2-Channel DC Motor Forward/Reverse Remote Control Switch

Reliable two-channel control for DC motor direction

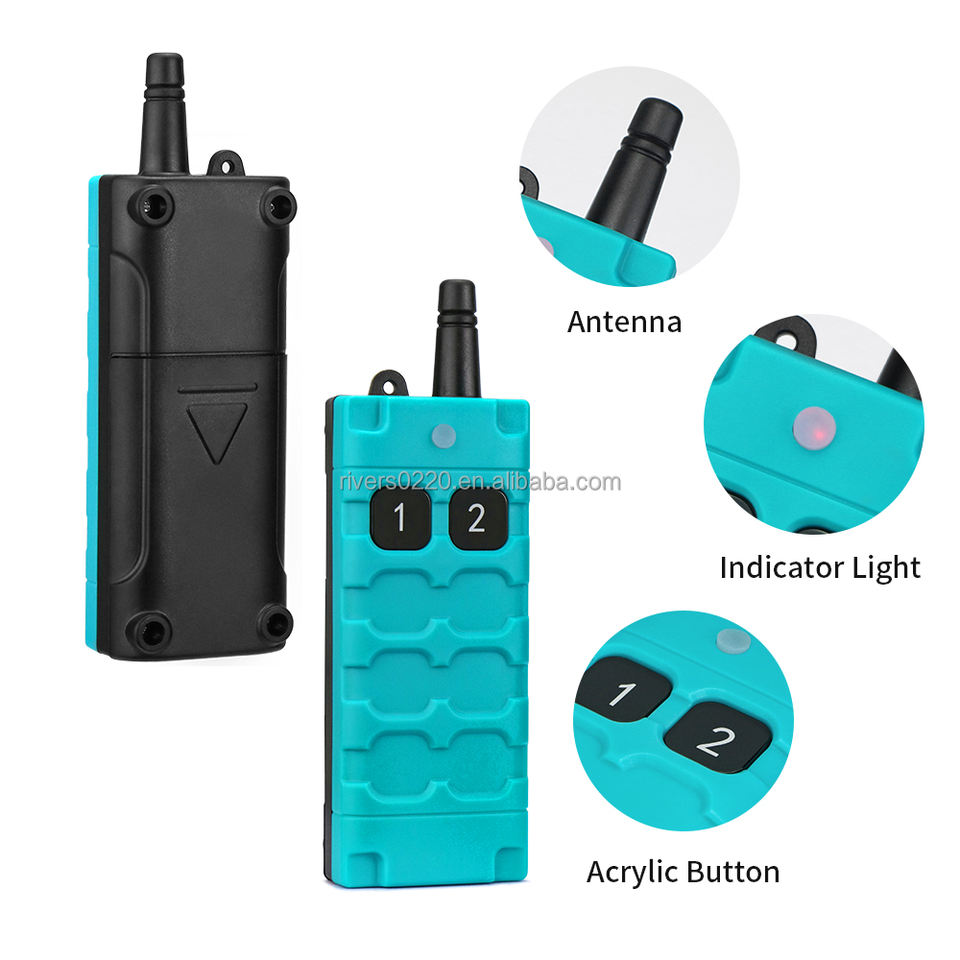

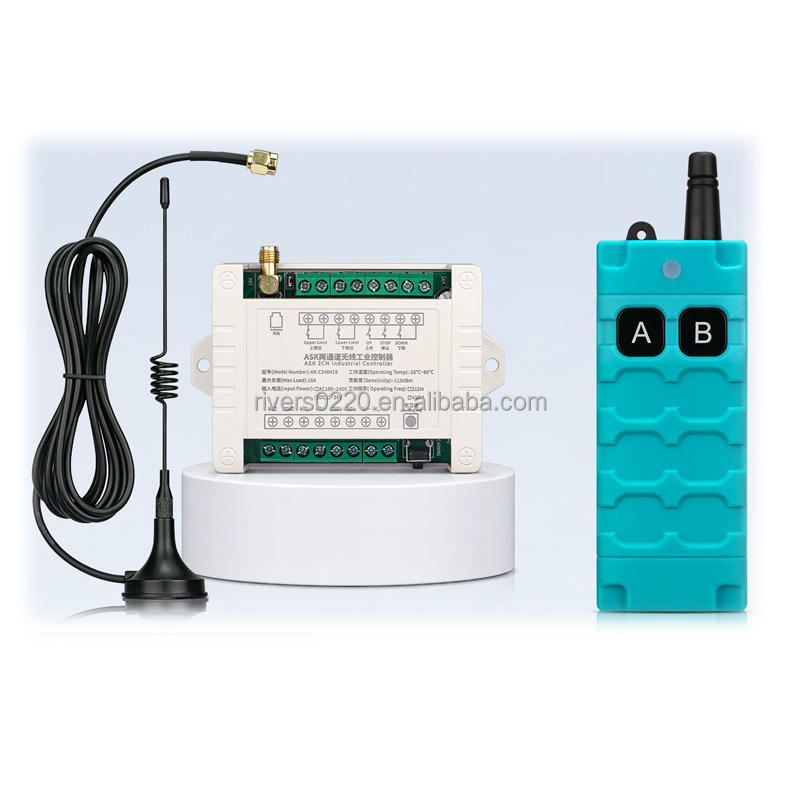

This wireless DC motor controller is designed for applications that need simple forward and reverse switching from a handheld RF transmitter. It supports 12 V, 24 V and 36 V DC systems and is suitable for pump control, linear actuators, rolling doors, light industrial automation and other compact motion-control installations.

Flexible operating modes

The receiver supports momentary, toggle and latched working modes, making it easy to match different control habits and machine requirements. A learning-code pairing method allows compatible transmitters to be matched quickly during installation or service.

Built for practical installations

The ABS enclosure keeps the controller lightweight and easy to mount, while the 95 x 68 x 28 mm body fits neatly inside control boxes or equipment housings. With low standby consumption and ASK modulation, the unit is well suited for projects that need dependable RF switching without unnecessary complexity.

Key advantages

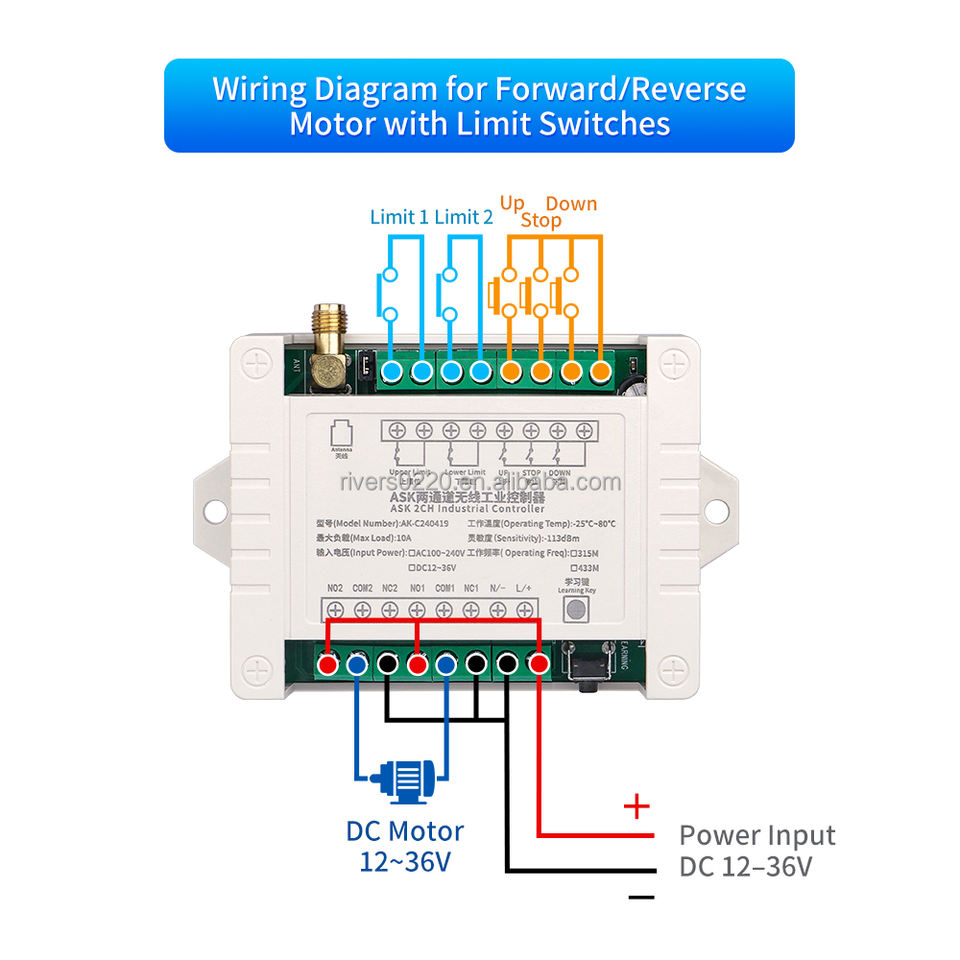

- Two-channel output for DC motor forward and reverse control

- Wide DC input support for 12 V, 24 V and 36 V systems

- 315/433 MHz RF options, with 433 MHz selected on this product page

- Up to 100 m control distance in open areas

- Momentary, toggle and latched modes for flexible operation

- Compact ABS housing for panel, cabinet or device installation

Typical applications

Use this controller for linear actuators, small pumps, rolling doors, motorized screens, lighting control, access control equipment and custom low-voltage automation projects that require wireless forward/reverse switching.
