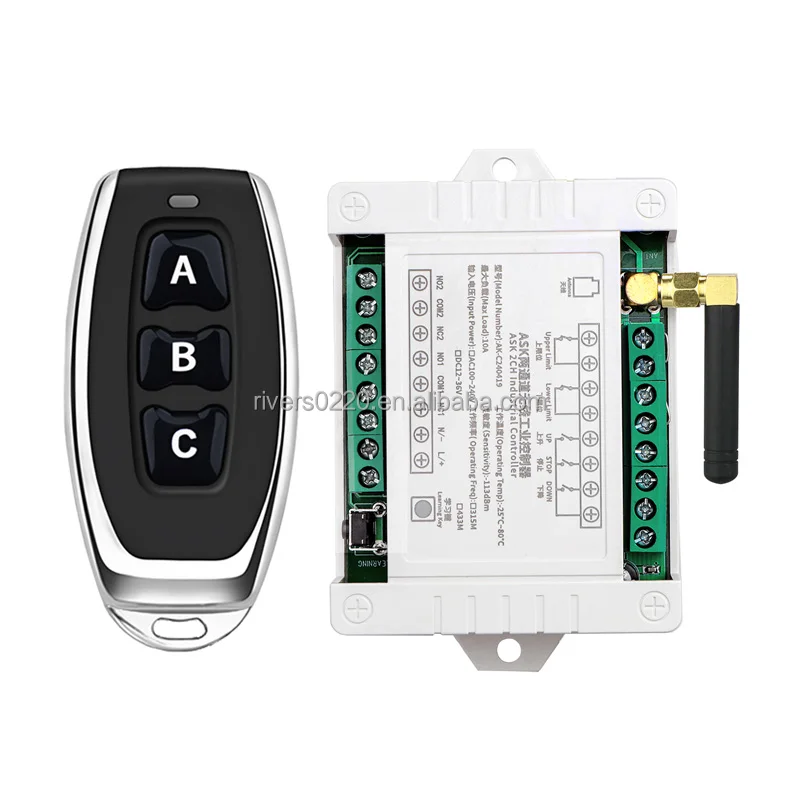

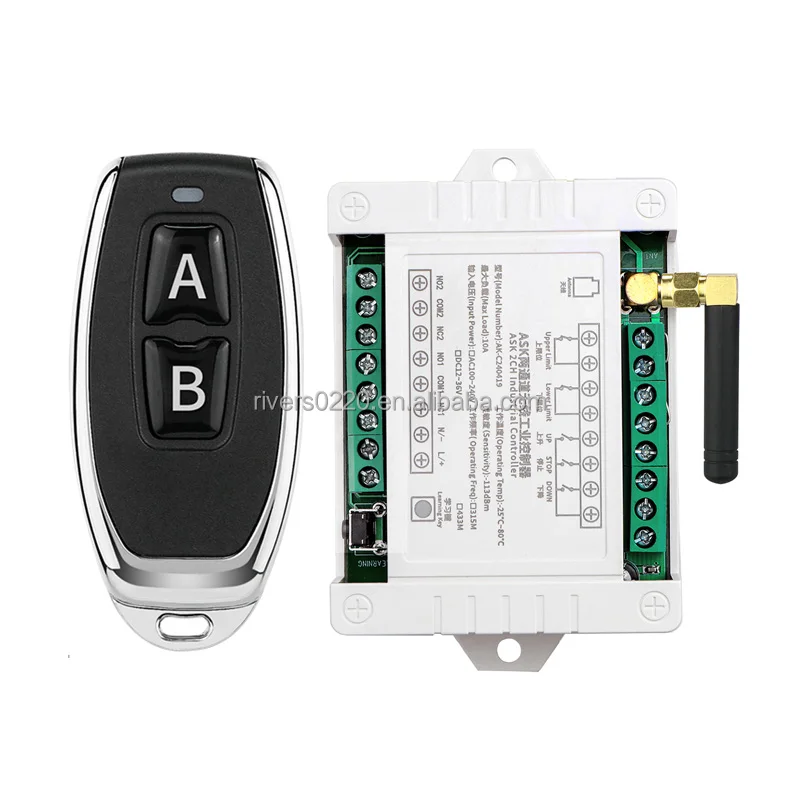

433MHz 2-Channel 10A DC Motor Remote Control Switch
A compact 433MHz two-channel 10A wireless controller for DC 12–36V motors, pumps and linear actuators, with up to 50 m range and momentary, toggle or latched operation.
Product details
433MHz Two-Channel Control for DC Equipment
This compact wireless controller provides two 10A output channels for remote operation of DC 12–36V equipment. It is designed for motors, water pumps, electric linear actuators and other applications that benefit from reliable forward/reverse or independent two-channel control.

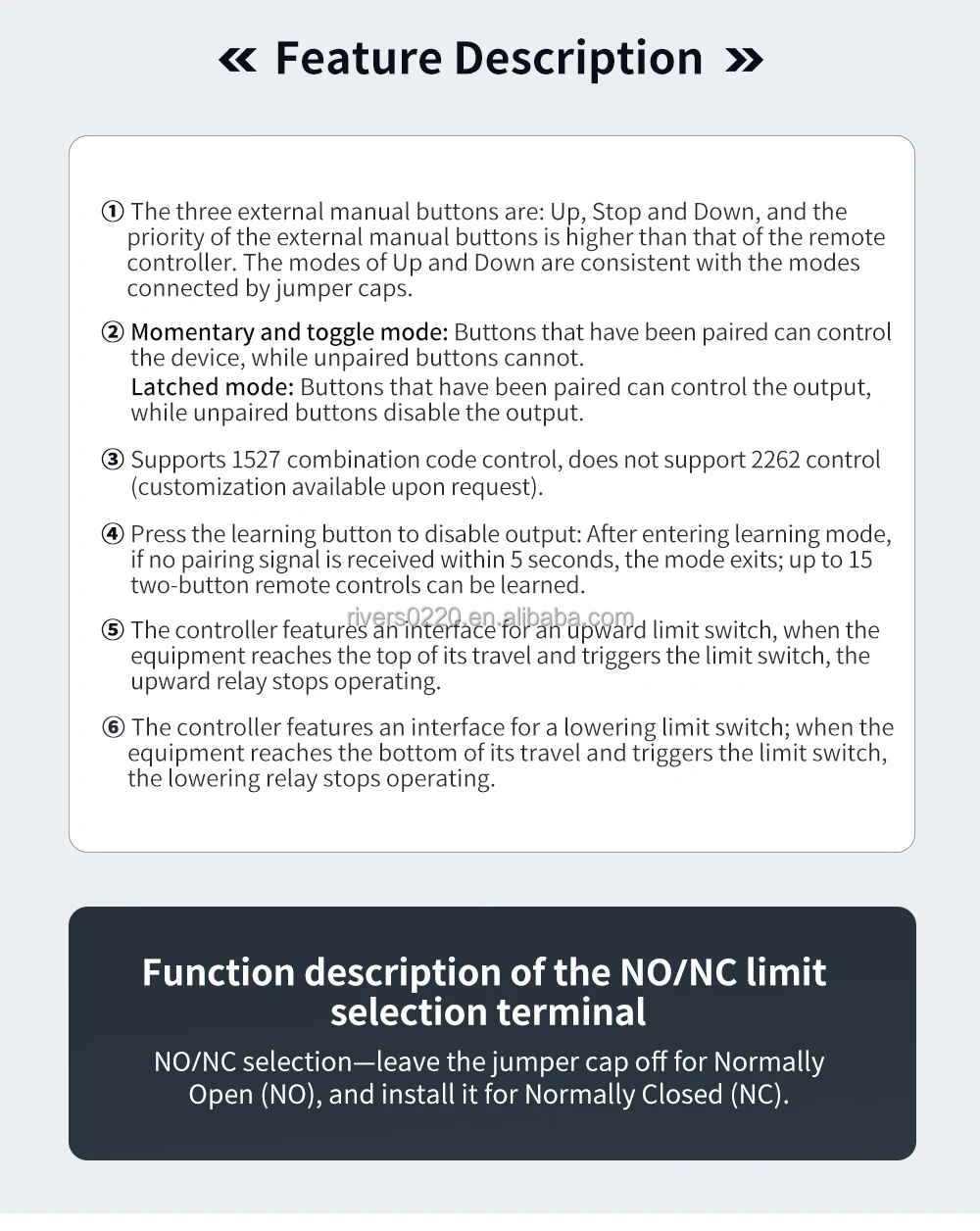

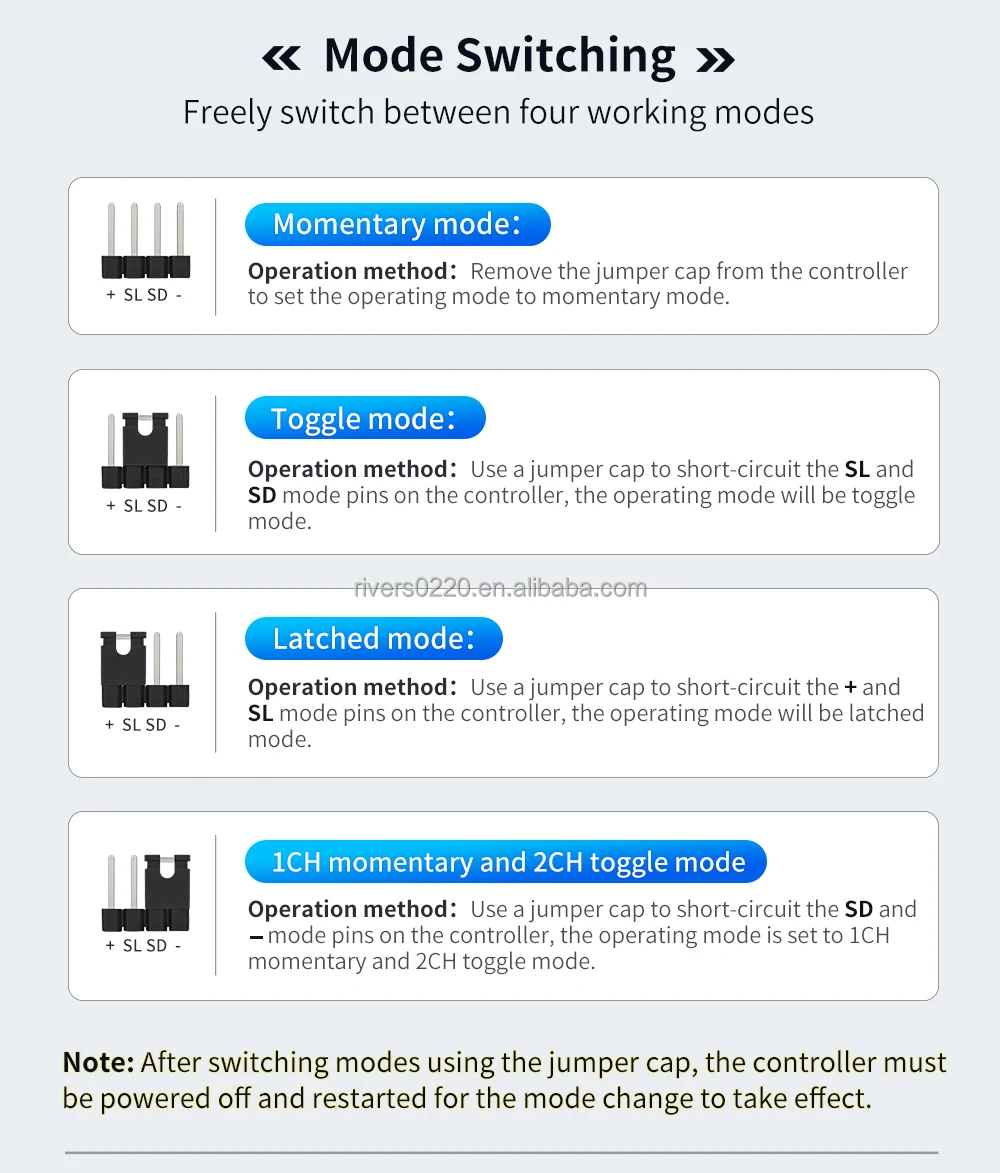

Flexible Operating Modes

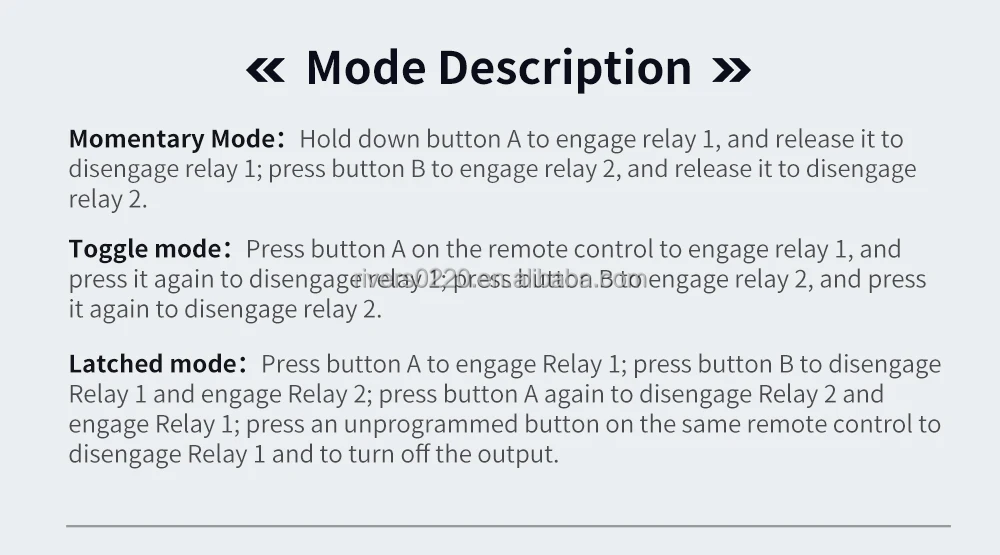

Choose momentary, toggle or latched operation to match the connected equipment. Momentary mode keeps an output active only while a remote button is pressed. Toggle mode changes the output state with each press, while latched mode supports coordinated switching between channels.
Key Features
Two-channel 10A wireless controller
Wide DC 12–36V working voltage

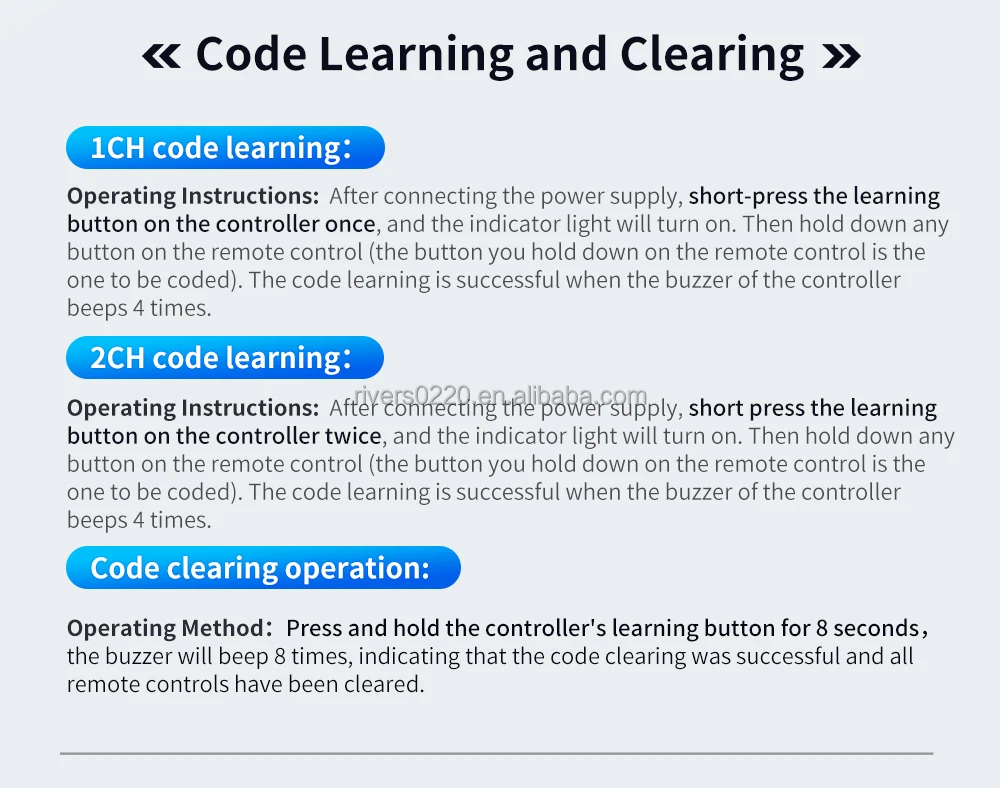

433MHz learning-code RF control
Control distance up to 50 metres
Momentary, toggle and latched modes
Durable ABS housing

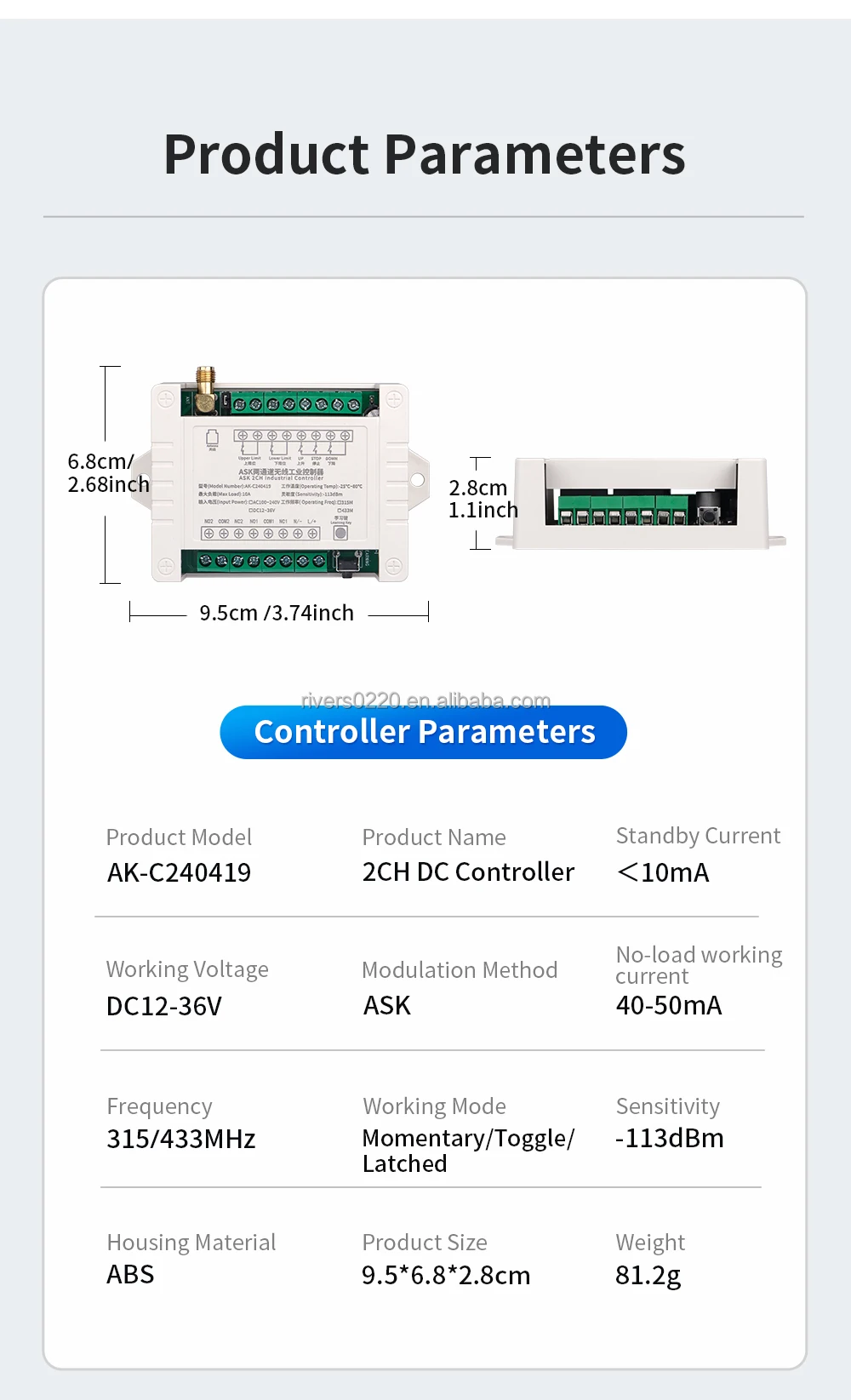

Compact 95 × 68 × 28 mm receiver
Typical Applications

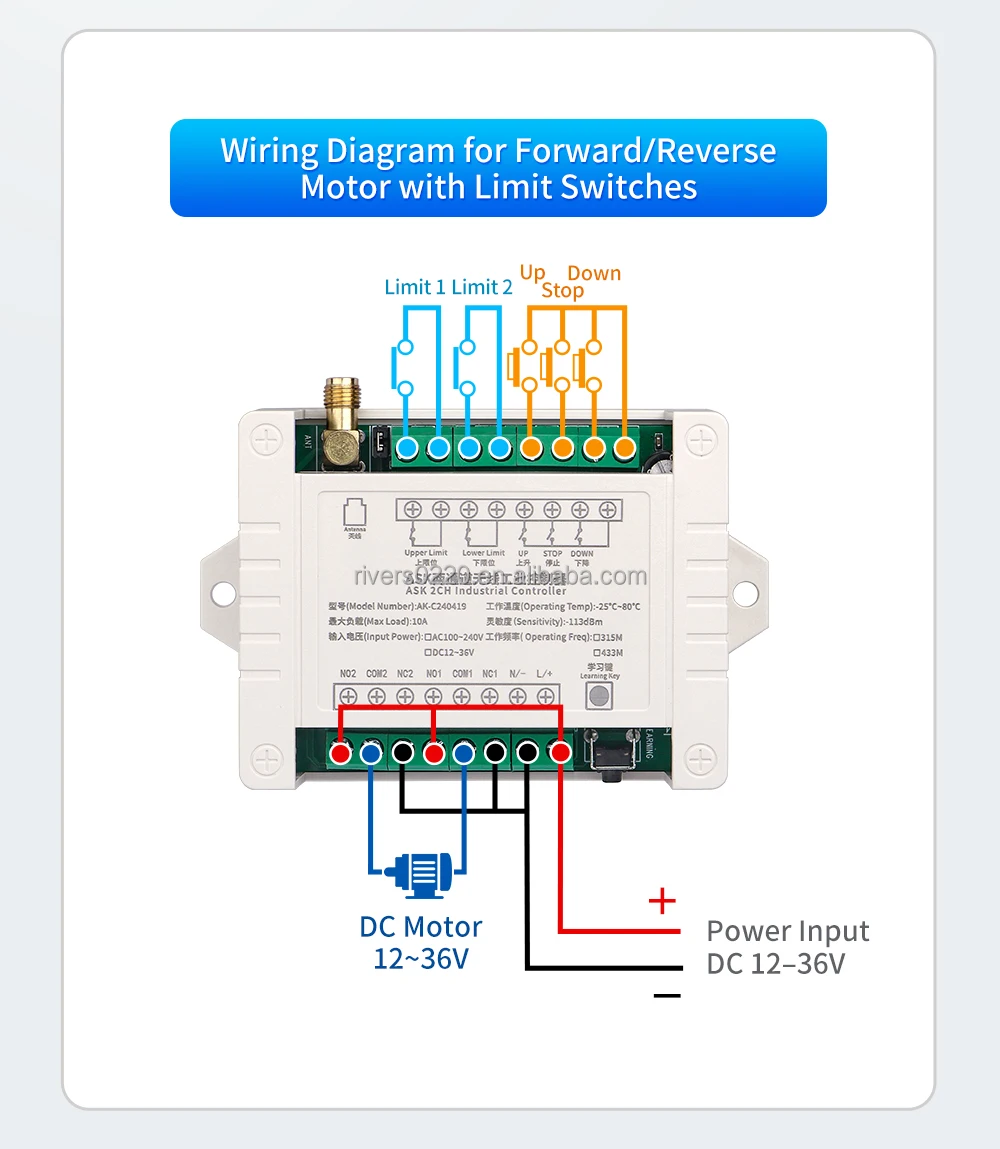

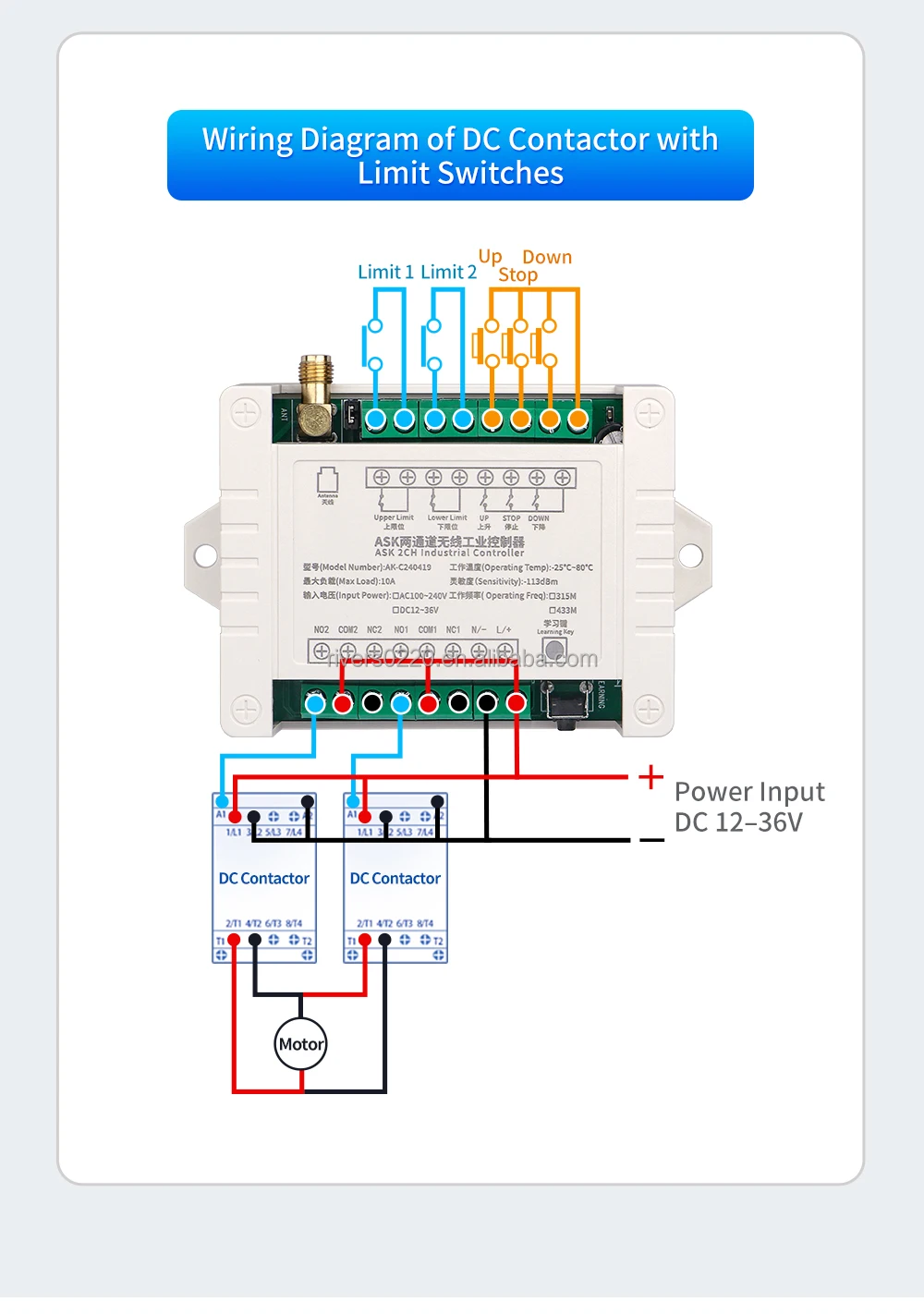

The controller is suitable for DC motors, water pumps, electric push rods, linear actuators, doors, access equipment and general automation projects. Its dual-channel design can be used for forward/reverse movement or for controlling two compatible loads.

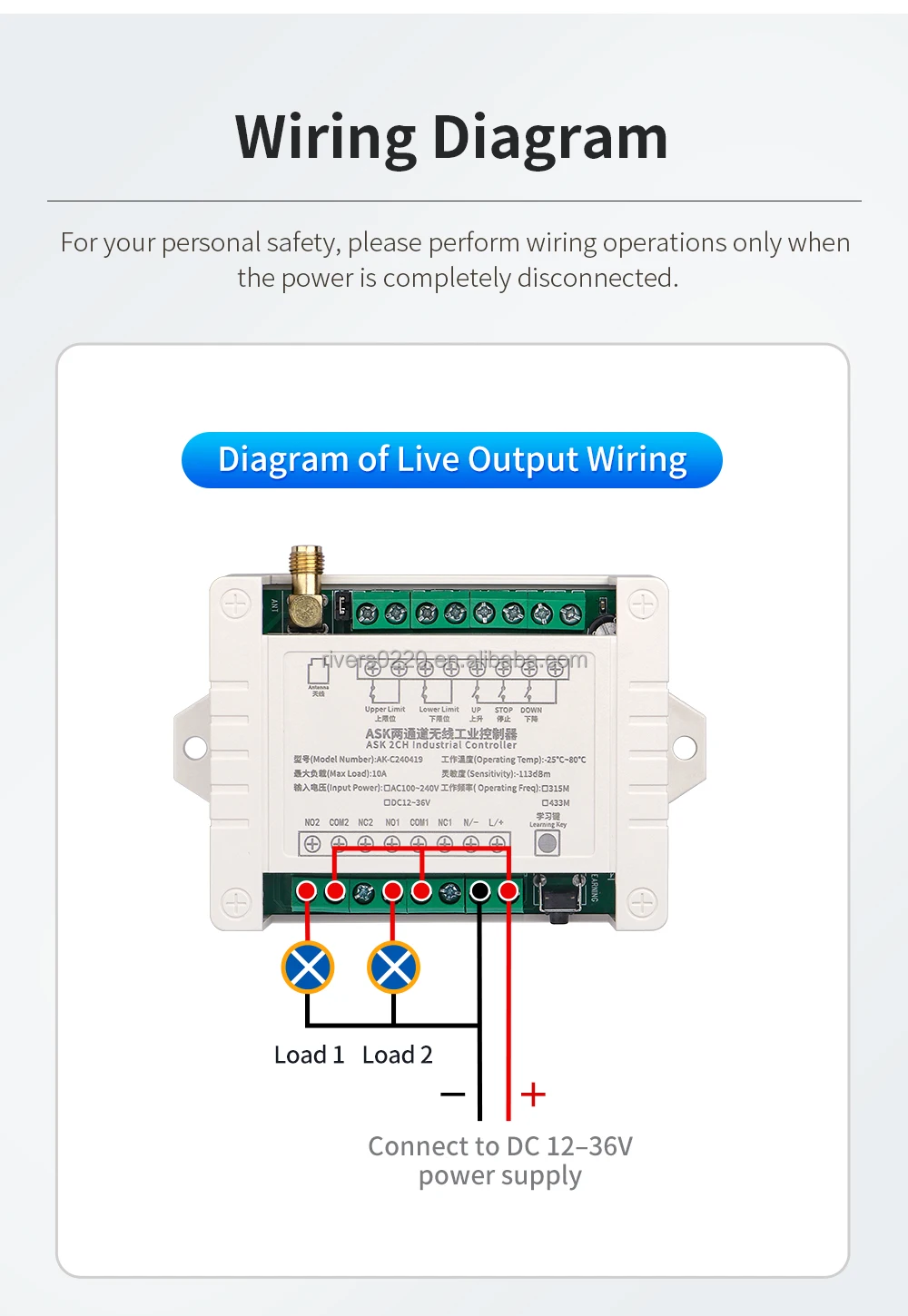

Installation Notes
Select a power supply and wiring sized for the connected load. Keep the load within the controller’s 10A rating and verify the required control mode before pairing. Actual wireless range varies with antenna position, obstacles and local radio interference.
Packaging
The product is supplied as a single item. The listed package size is 12 × 8 × 6 cm with a gross weight of approximately 1.0 kg.
Specifications
