Mini Wireless Motor Forward Reverse Controller

Name: Mini Wireless Motor Forward Reverse Controller
Brand: Rivers RF Control
SKU: R16&MOTOR

MODEL · R16&MOTOR

A compact 315/433.92 MHz wireless controller kit for low-voltage DC motors, supporting forward, reverse and stop control from DC 3.5V to 12V with loads up to 2A/24W.

Chat on WhatsApp

Product details

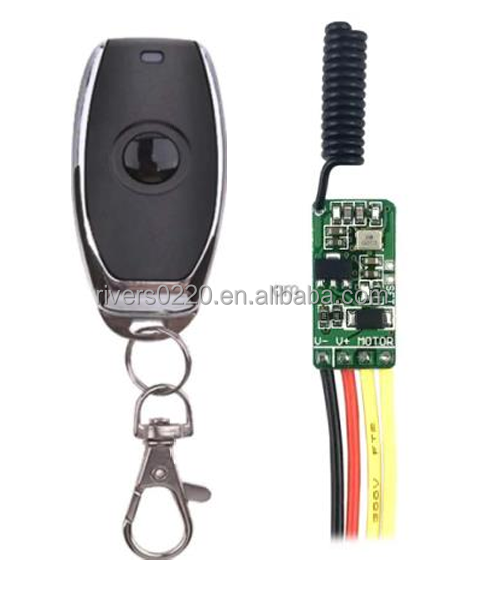

The R16&MOTOR is a miniature wireless remote control kit designed for forward, reverse and stop control of low-voltage DC motors. Its compact receiver module fits space-limited applications such as small actuators, motorized mechanisms, smart home projects, lighting and DIY automation.

The module accepts a wide DC 3.5V–12V power supply and supports a maximum load of 2A/24W. It is available at 433.92 MHz or 315 MHz and uses learning-code wireless control with an effective control distance of approximately 30 meters.

Jog, self-locking and interlocking operating modes are supported, allowing the controller to suit different motor-control requirements. The receiver module measures only 21 × 11 × 5 mm.

Specifications

ModelR16&MOTOR

Product typeRemote control and receiver module kit

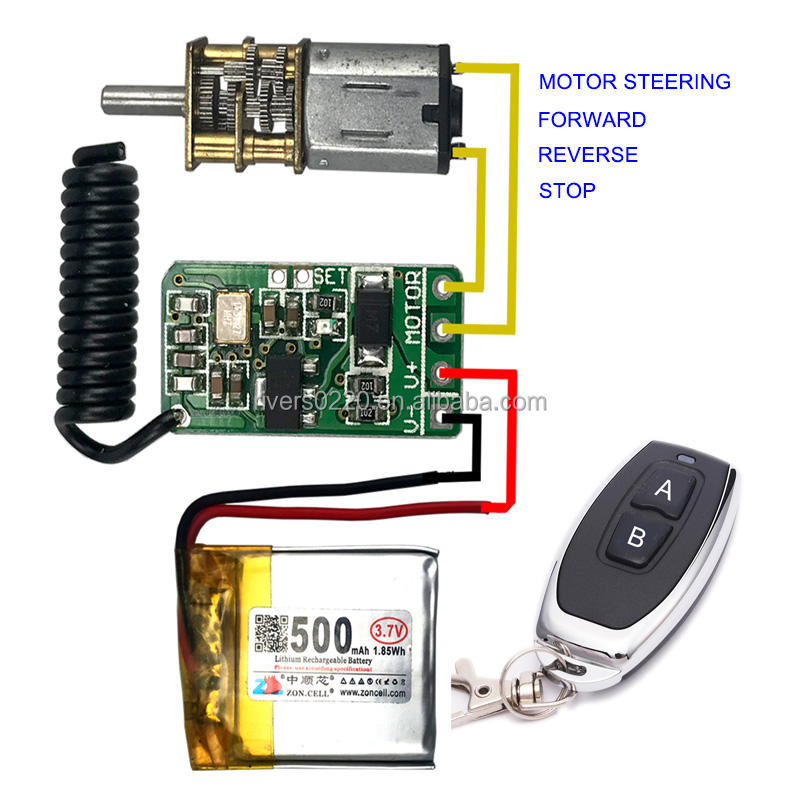

ApplicationDC motor forward / reverse / stop control

Frequency433.92 MHz / 315 MHz

Code typeLearning code

Control distance30 m (open environment)

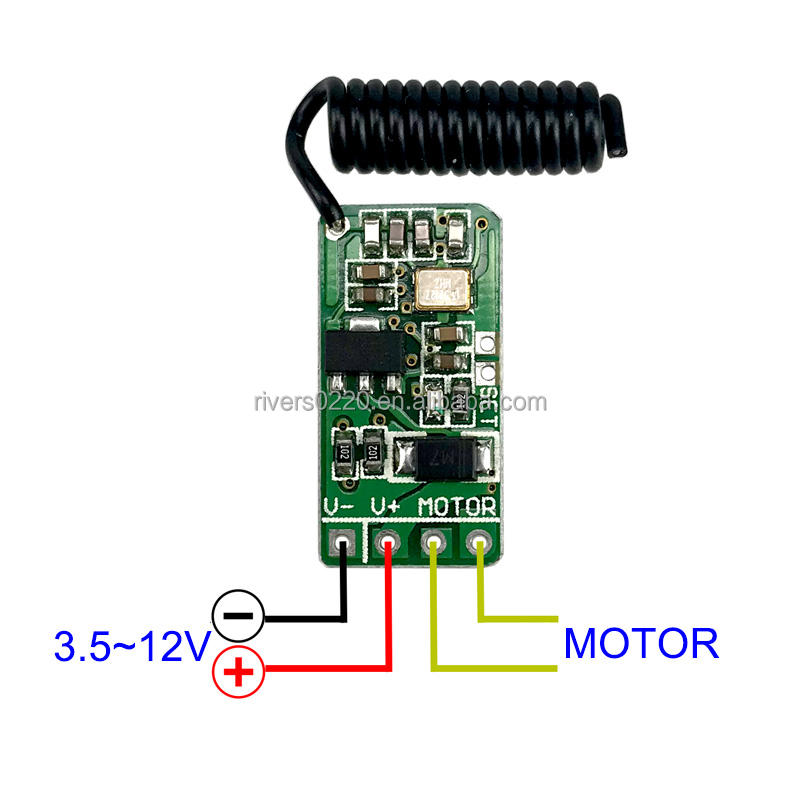

Module power supplyDC 3.5V–12V

Maximum load≤2A / 24W

Working modesJog / self-locking / interlocking

Receiver module size21 × 11 × 5 mm

MaterialPlastic

ColorBlack

Single package size15 × 18 × 10 cm

Single gross weight0.900 kg
