MT12V 433MHz DC Motor Forward/Reverse Controller
MODEL · MT12VA compact 433.92MHz wireless controller for small DC motors, providing forward, reverse, and stop control with momentary, toggle, latched, and power-saving modes.
Product details
Compact Wireless Control for Small DC Motors
The MT12V combines a miniature receiver module with 433.92MHz wireless control for small DC motors and motor-drive applications. It provides straightforward forward, reverse, and stop operation without requiring a wired control at the point of use.
Flexible Operating Modes
Configure the controller for momentary, toggle, latched, or power-saving operation to suit different control sequences. Learning-code pairing makes it practical to match compatible 433.92MHz remote transmitters during setup.
Designed for Low-Voltage Projects
With a DC 3–12V operating range and a maximum specified load of 2A or 24W, this compact module is suited to small motors, model mechanisms, lightweight actuators, and other compatible low-voltage projects.
Key Benefits
Wireless forward, reverse, and stop motor control
433.92MHz RF operation with learning-code pairing
Supports momentary, toggle, latched, and power-saving modes
DC 3–12V operating voltage range
Maximum specified load of 2A / 24W

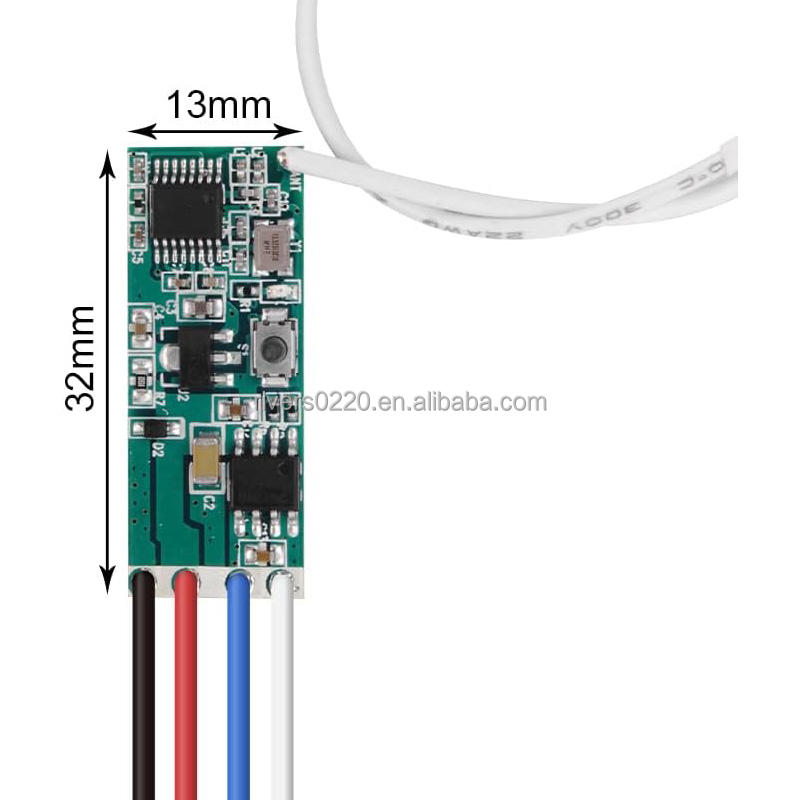

Compact 32.2 × 12.8 × 3.1 mm receiver module
Suitable for small motors and motor-drive applications

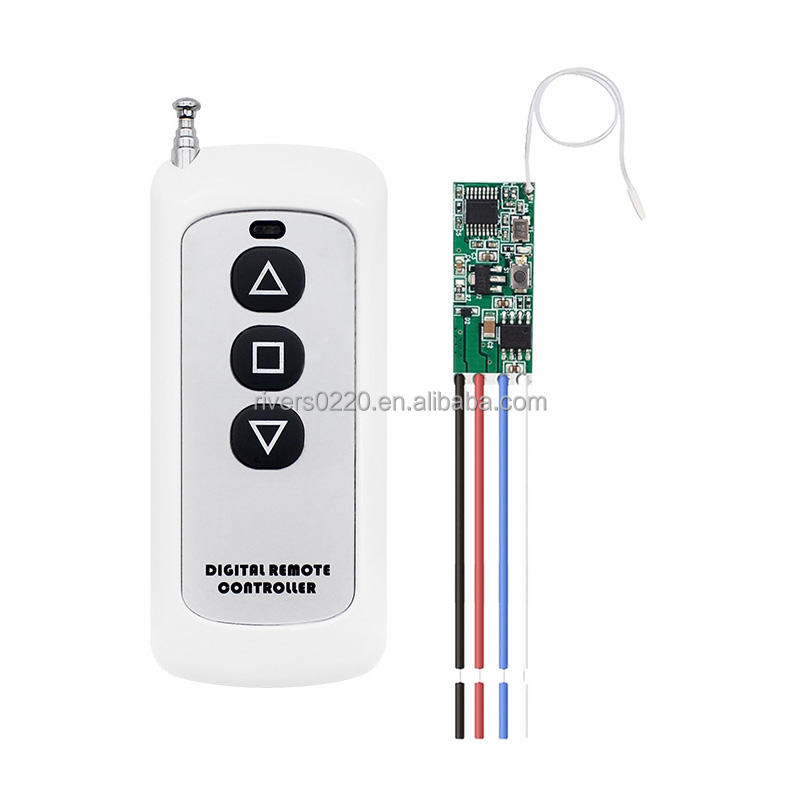

Black plastic handheld remote control
Installation Guidance
Confirm the motor voltage, starting current, running current, wiring polarity, and operating mode before installation. Do not exceed the specified electrical limits. Disconnect power during wiring and use suitable protection and an enclosure for the final application.
