R01MINI Smart Wireless Button Remote with R08A Receiver
MODEL · R01MINI & R08ACompact single-button EV1527 wireless remote and R08A receiver kit for universal smart switching, with 433.92 MHz operation and up to 30 m control range.
Chat on WhatsAppProduct details

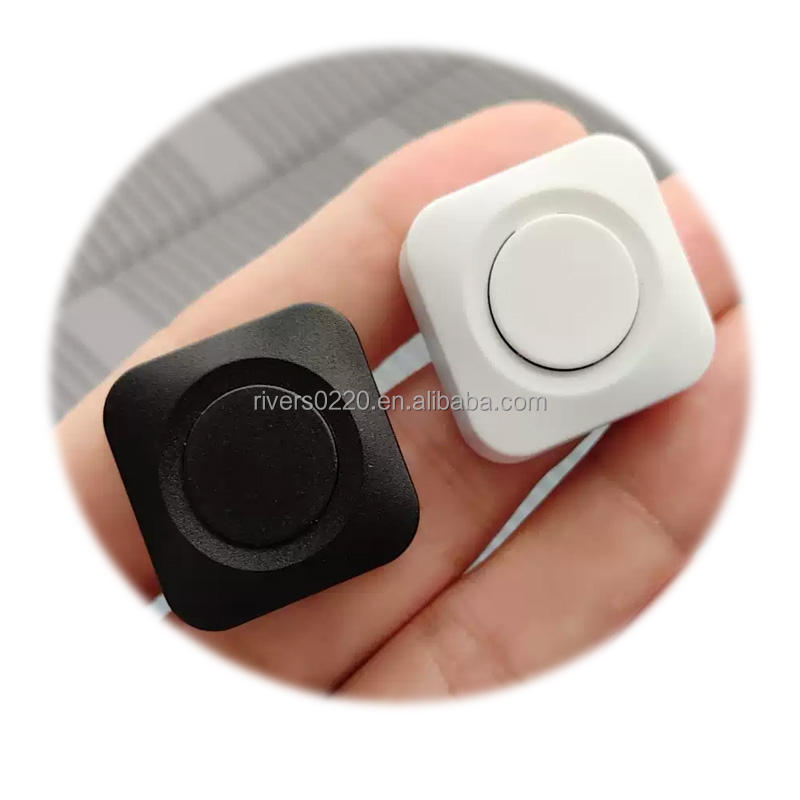

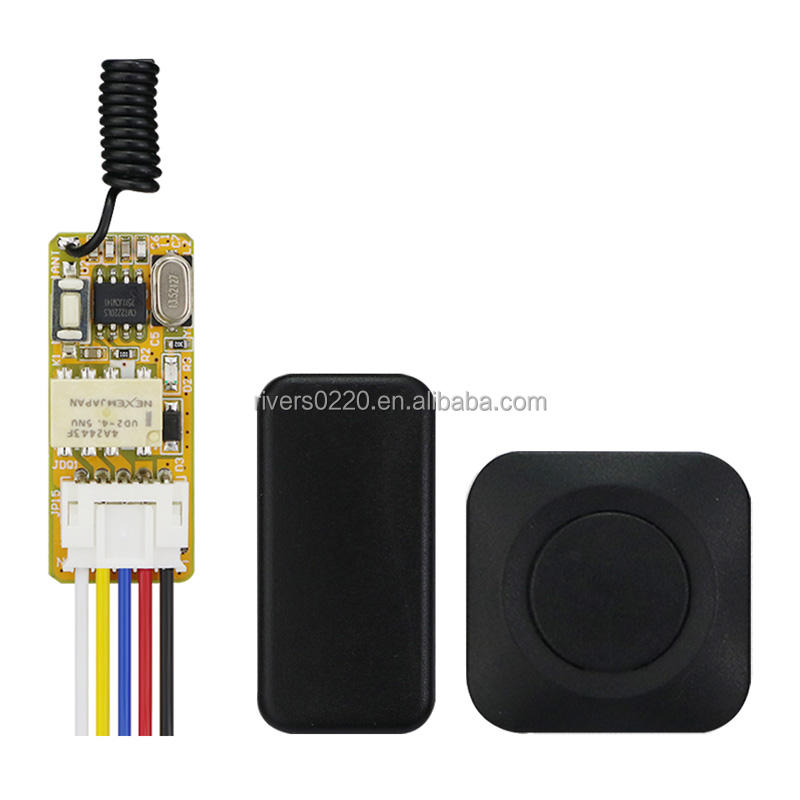

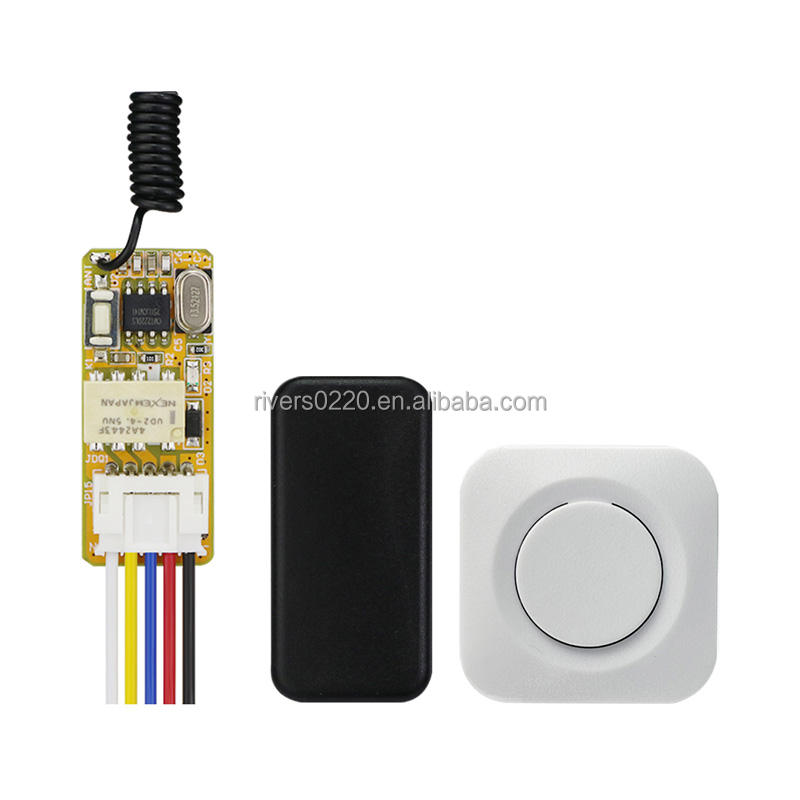

The R01MINI and R08A kit combines a fingertip-sized wireless button with a compact receiver module for smart-home controls, lighting, access systems and portable switching applications. The remote is available in black or white and uses an easy-to-pair EV1527 learning code.
The miniature transmitter runs from one CR2032 battery and reaches up to 30 meters in open conditions. The R08A receiver supports DC 3.5–12V power, a maximum 1A load and multiple selectable operating modes.
Key features

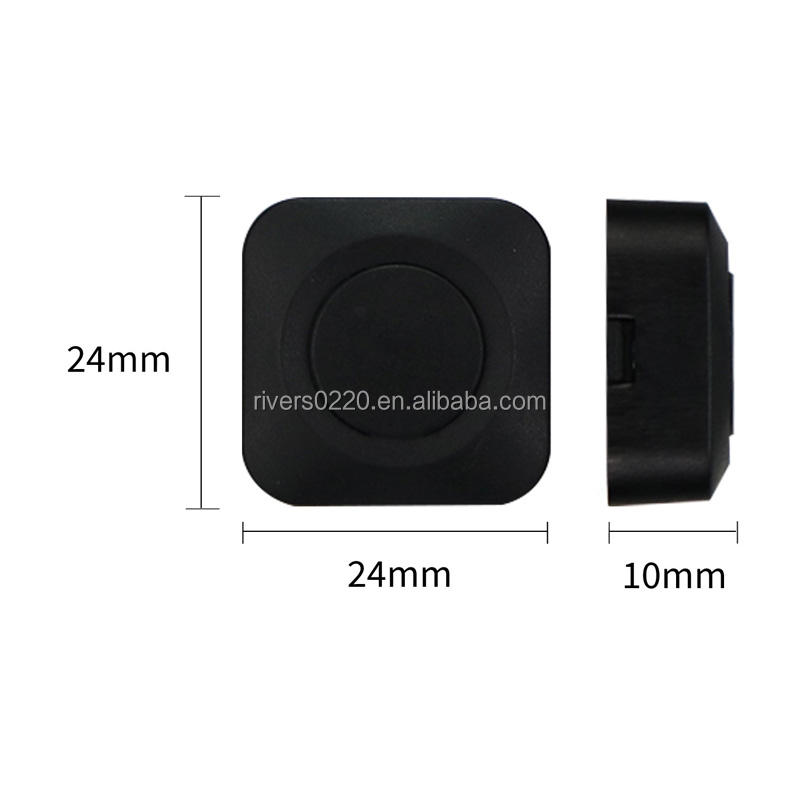

• Small 24 × 24 × 10 mm single-button transmitter
• Portable, stick-on or fingertip operation
• EV1527 learning-code encoding
• 433.92 MHz standard frequency, with 315 MHz option
• Up to 30 m open-area control distance

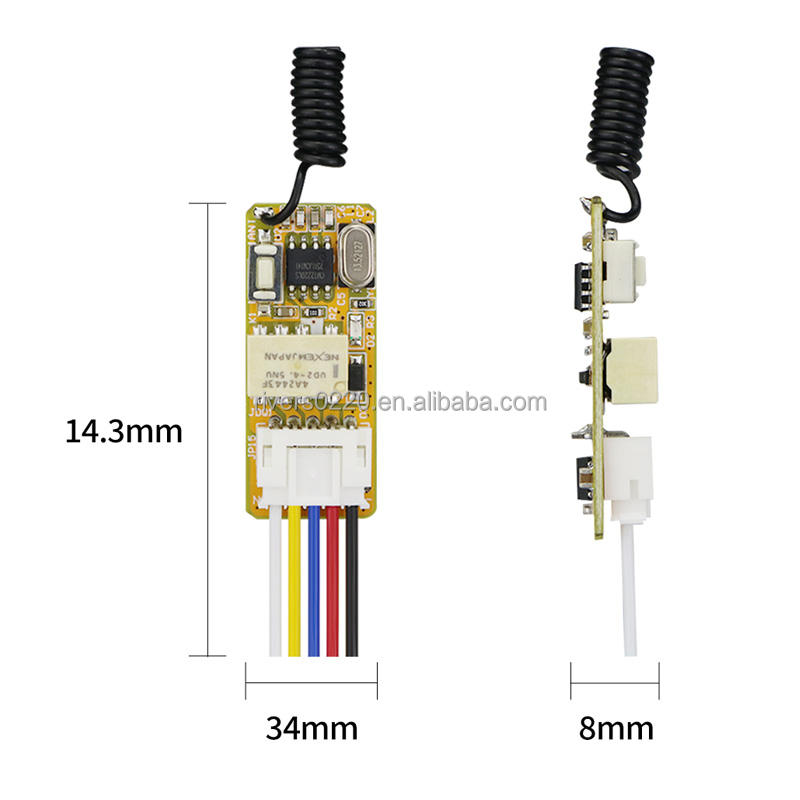

• R08A receiver supports DC 3.5–12V input
• Momentary, toggle, latched and time-delay modes
• Black and white transmitter options
• Suitable for lights, doors, alarms, smart-home controls and DIY electronics
