R083 & DL02 Wireless Motor Control Kit with Limit Inputs

Wireless Direction Control with Wired Limit Inputs

The R083 & DL02 kit combines a two-channel RF relay receiver, a white two-button handheld remote and an external antenna for low-voltage motor control. The receiver operates from DC 12–36V and provides connections for upper and lower travel limits, together with wired UP, STOP and DOWN commands. It is a practical choice for compatible reversible DC motors, small actuators, shutters and gate mechanisms.

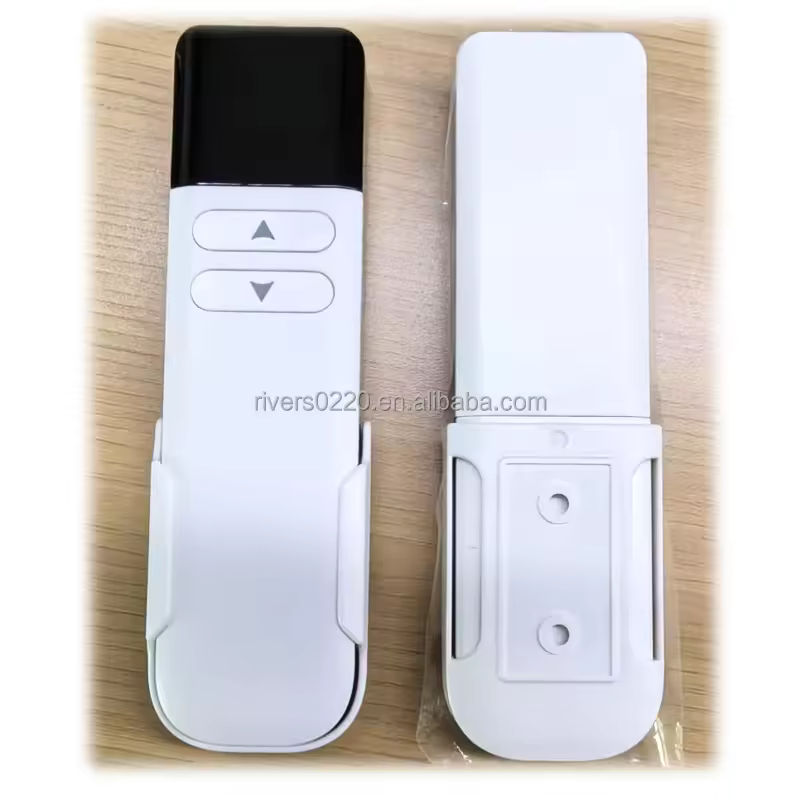

This configuration uses the long white DL02 remote with separate up and down buttons and a removable wall holder. It provides a different handheld format from a key-fob transmitter while retaining local wired control connections at the receiver.

Control Connections for Motorized Equipment

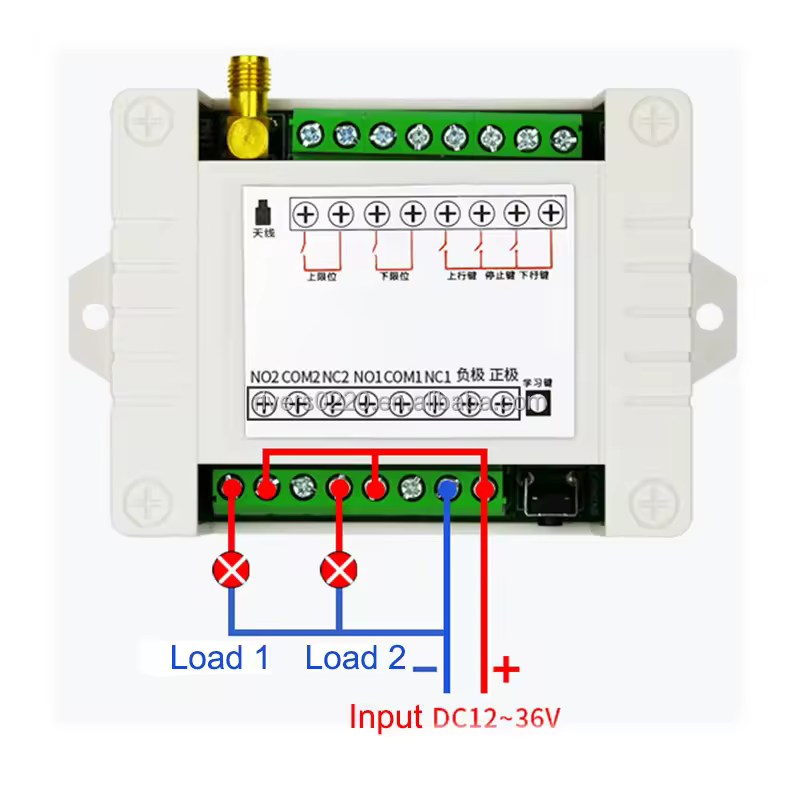

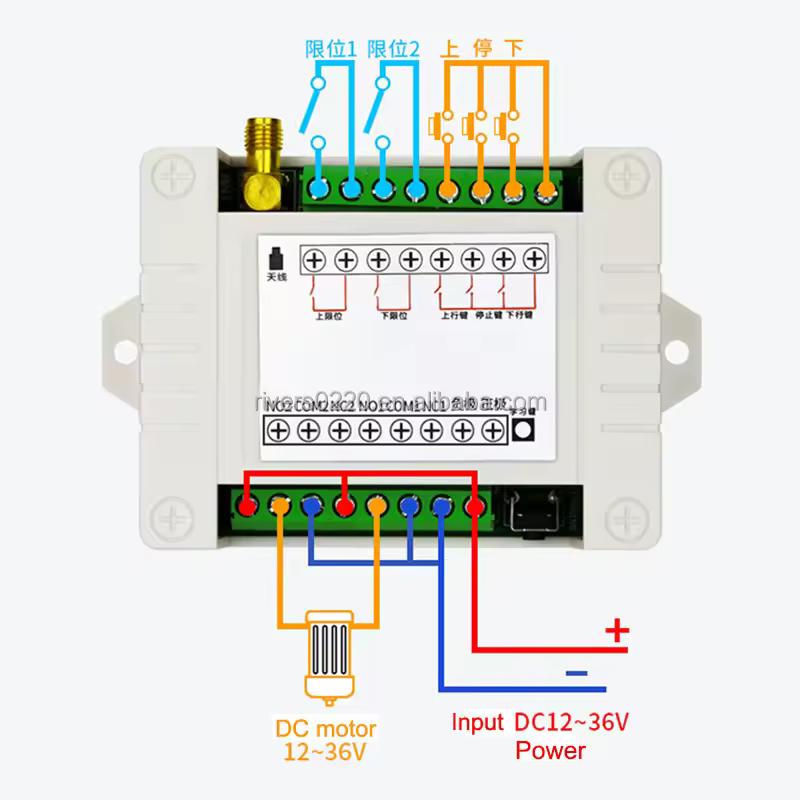

Two relay channels expose normally open, common and normally closed terminals. These contacts can be wired for forward and reverse operation of a compatible DC motor, or for switching two suitable loads according to the selected operating mode. The terminal layout also includes separate upper-limit and lower-limit connections, allowing external travel switches to be incorporated into the control arrangement.

• DC 12–36V receiver supply for low-voltage installations.

• Two relay channels with NO, COM and NC terminals.

• Upper and lower limit inputs for travel control.

• Wired UP, STOP and DOWN inputs for local commands.

• External antenna connection and supplied antenna for flexible positioning.

Select the Working Mode and Pair the Remote

The receiver supports momentary, toggle and interlocked operation. A mode-selection jumper on the board sets the working behavior, while the learning button is used for remote pairing. Select the mode to suit the mechanism and verify both directions and the stop response before putting the equipment into service.

Momentary operation suits applications requiring an output only while a button is held. Toggle operation changes an output state with successive commands. Interlocked operation coordinates the two relay channels for directional control. The exact wiring and pairing sequence should follow the instructions supplied with the selected receiver version.

Handheld Control and Antenna Placement

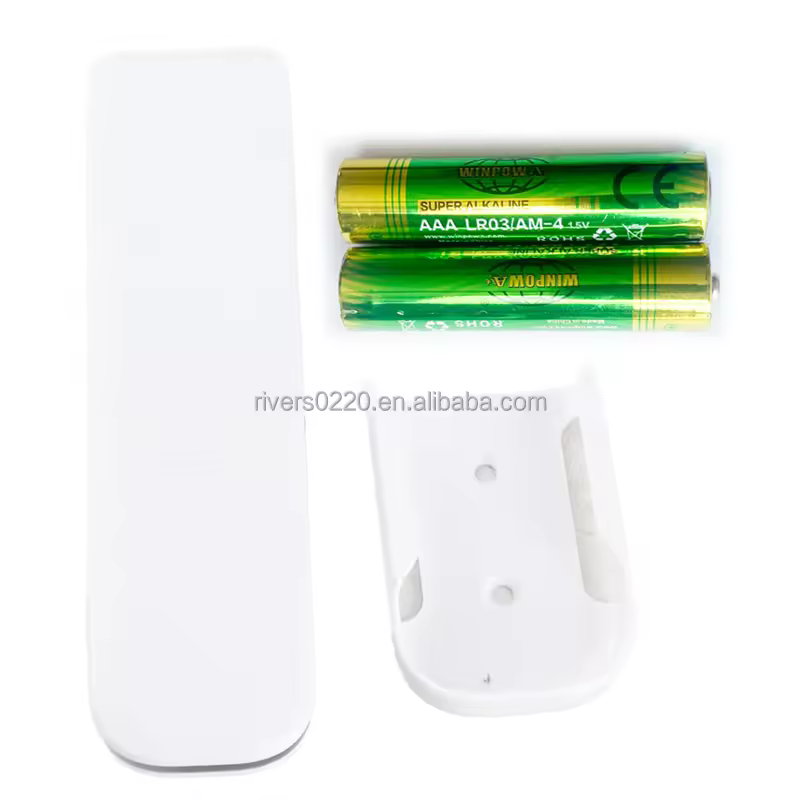

The DL02 remote uses two AAA batteries and has clearly separated directional buttons. Its wall holder keeps the transmitter accessible near the controlled equipment. The listing specifies a wireless control distance of up to 50 metres; actual range depends on the installation, obstructions, antenna placement and local radio conditions.

315MHz and 433MHz frequency versions are available. Match the transmitter and receiver frequency when specifying the kit. Position the external antenna away from metal shielding where practical and test operation at the intended control locations.

Specification and Installation Checks

The receiver is marked for a maximum relay load of 10A. Check the connected motor's starting and running current against the appropriate contact rating, and size the supply and wiring for the load. Use the DC 12–36V version shown in the product wiring diagrams and confirm the terminal markings on the supplied unit before connection.

For a project quotation, specify the supply voltage, motor type and current, preferred RF frequency, operating mode and limit-switch arrangement. Confirm the required remote, antenna and mounting accessories with the order so the delivered kit matches the intended installation.
