R208 1000m Long-Range Universal RF Remote Control

MODEL · R208

Universal 1–4 channel RF remote control with 315/433 MHz options, EV1527 learning code and up to 1000 m theoretical open-area transmission range.

Chat on WhatsApp

Product details

The R208 is a long-range universal RF remote control designed for wireless lights, gates, garage doors, access systems and smart-home switching. One-, two-, three- and four-channel configurations are available to match different receiver and control requirements.

Operating at 315 MHz or 433 MHz, the transmitter uses ASK modulation and EV1527 learning-code encoding for straightforward pairing with compatible receivers. In open, ideal conditions, the theoretical transmission distance can reach 1000 meters.

Key features

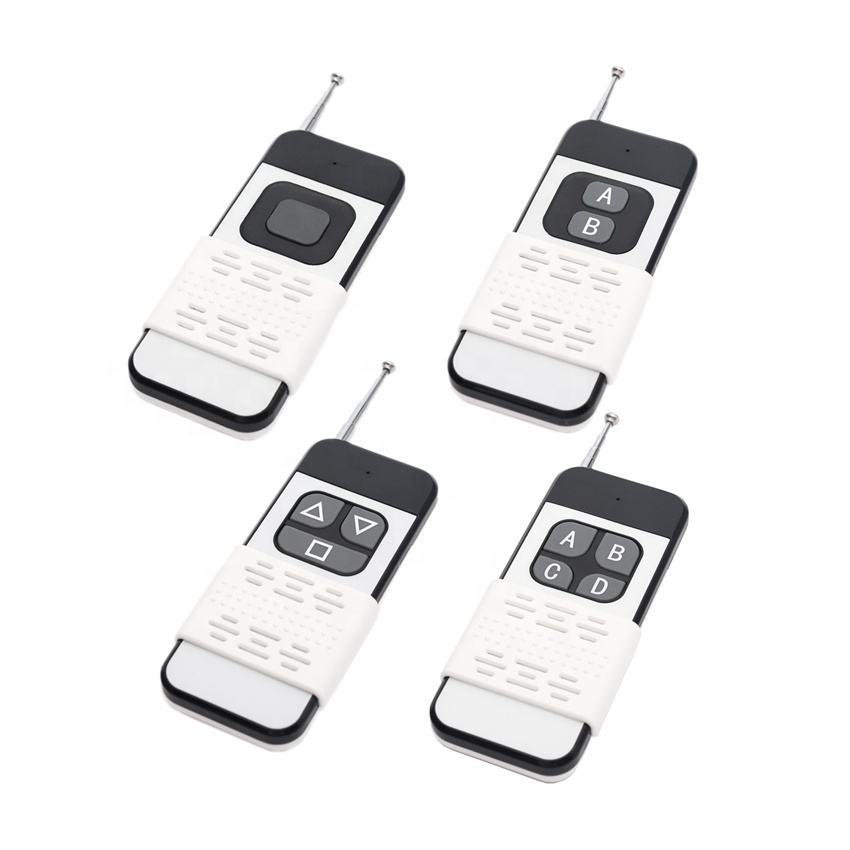

• One-, two-, three- or four-channel versions

• Up to 1000 m theoretical range in open ideal conditions

• 315 MHz and 433 MHz frequency options

• EV1527 learning-code compatibility

• ASK wireless modulation

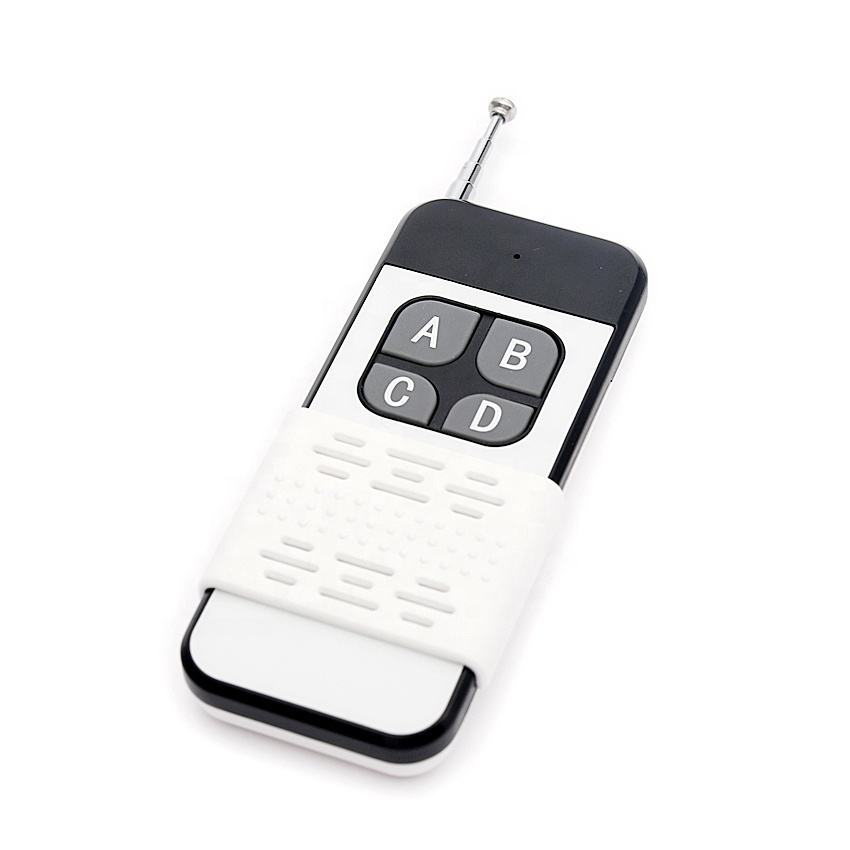

• Four-button white handheld enclosure

• 12V 23A battery included

• Suitable for lights, gates, garage doors, access control and remote on/off switching

• Plastic and metal construction

Specifications

Product typeUniversal long-range RF remote control
ModelR208
Channels1 / 2 / 3 / 4
Buttons4
Operating frequency433 MHz / 315 MHz
Encoding typeLearning code
Encoding chipEV1527
ModulationASK
Operating voltageDC 12V
Operating current9–12mA
Transmitting power10–15mW
Theoretical rangeUp to 1000 m in open ideal conditions
Battery12V 23A battery included
ColorWhite
MaterialPlastic and metal
Package size10 × 10 × 8 cm
Gross weight0.30 kg
