RAB8 4-Channel Long-Range RF Wireless Remote Control Switch1 / 6

Receivers & Switches

RAB8 4-Channel Long-Range RF Wireless Remote Control Switch

MODEL · RAB8

Industrial 4-channel RF receiver and remote control kit for DC 12–36V systems, with 433/315 MHz options and up to 1000 m theoretical open-area range.

Chat on WhatsApp

Product details

RAB8 is a four-channel wireless controller designed for industrial switching, access control, lighting, motors, electric doors and other remote-control applications. It supports DC 12–36V input and is also available in an AC 100–240V version.

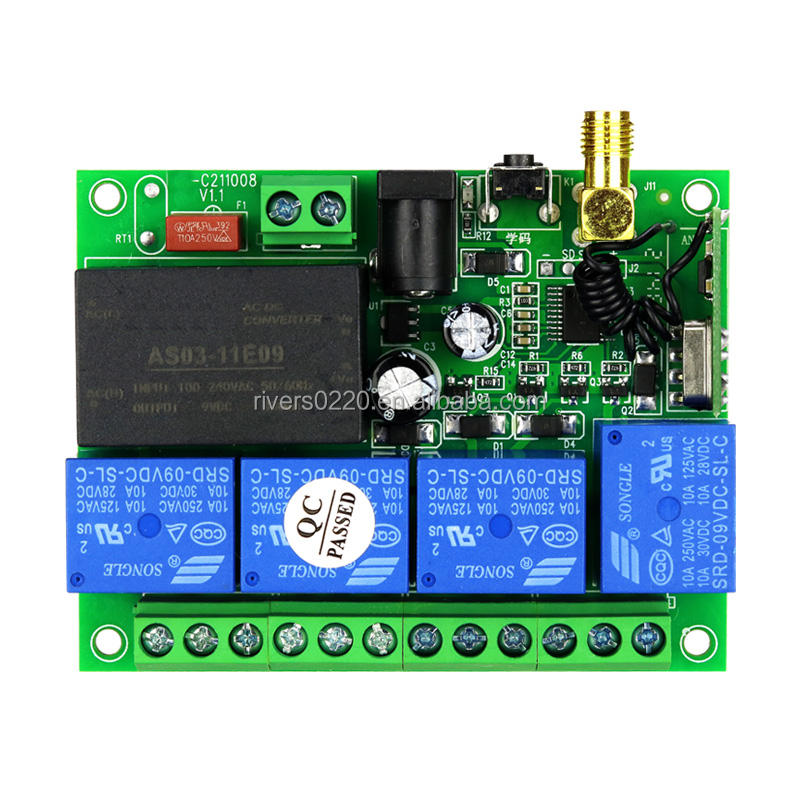

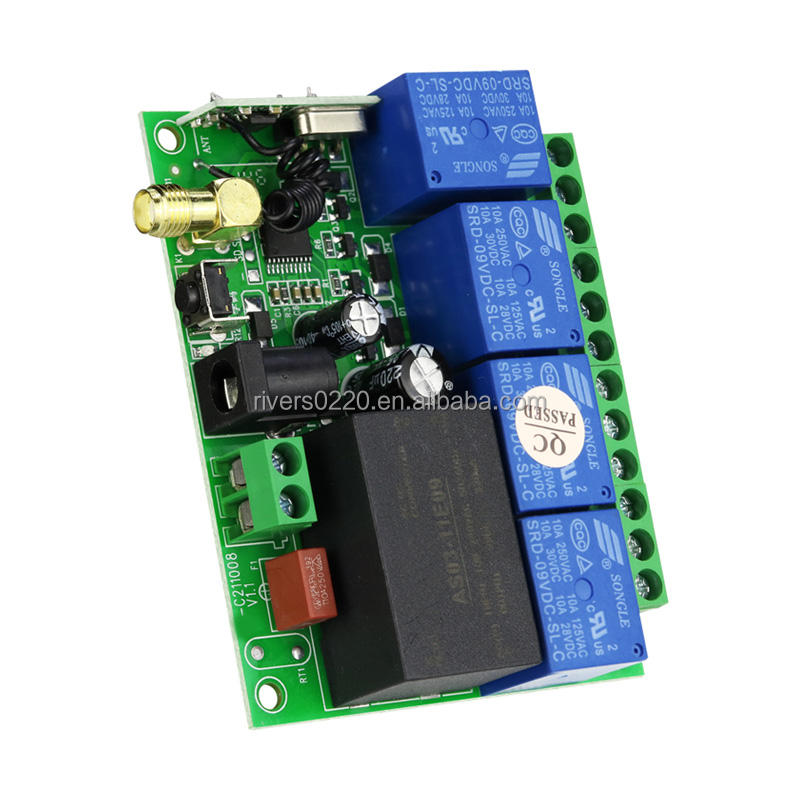

The receiver uses ASK modulation and supports 433 MHz or 315 MHz transmitters. Each relay supports loads up to 10A, while low standby power helps make the controller suitable for continuously powered installations.

Key features

• Four independent relay channels

• Learning code EV1527 and fixed code HS2260 compatibility

• Up to 1000 m theoretical range in open, ideal conditions

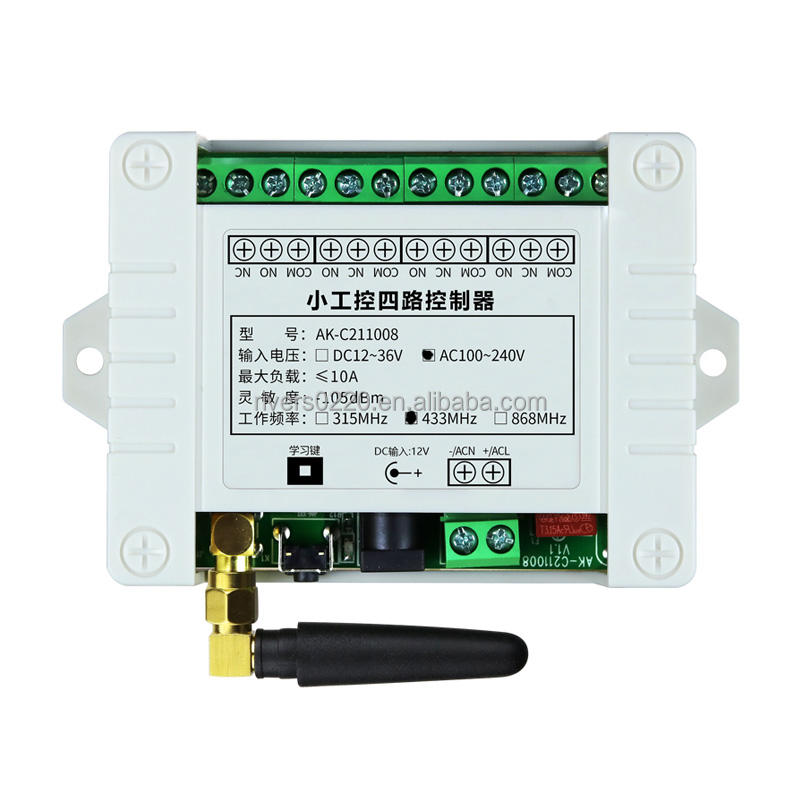

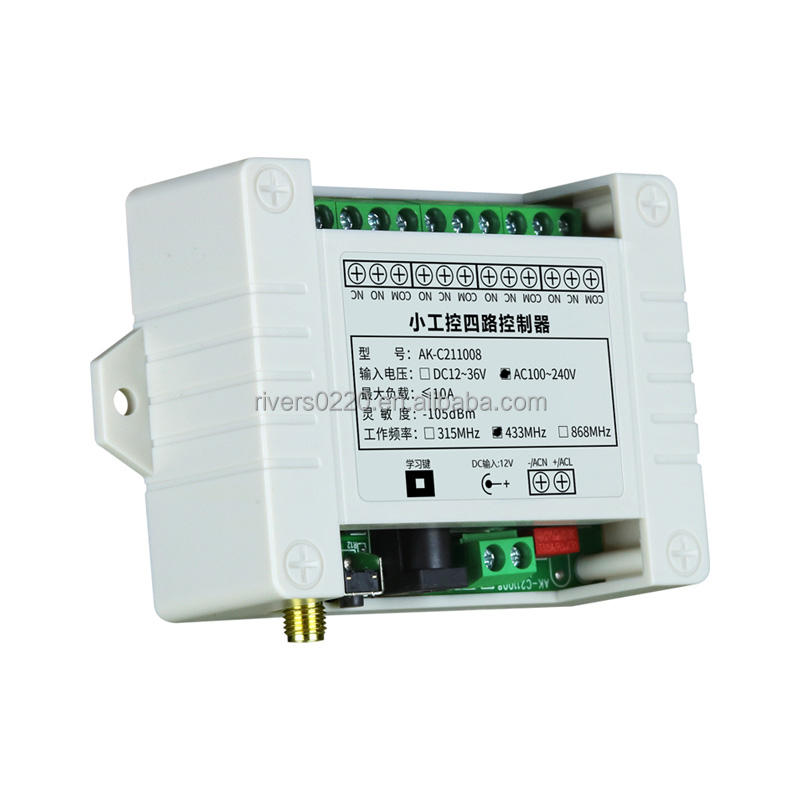

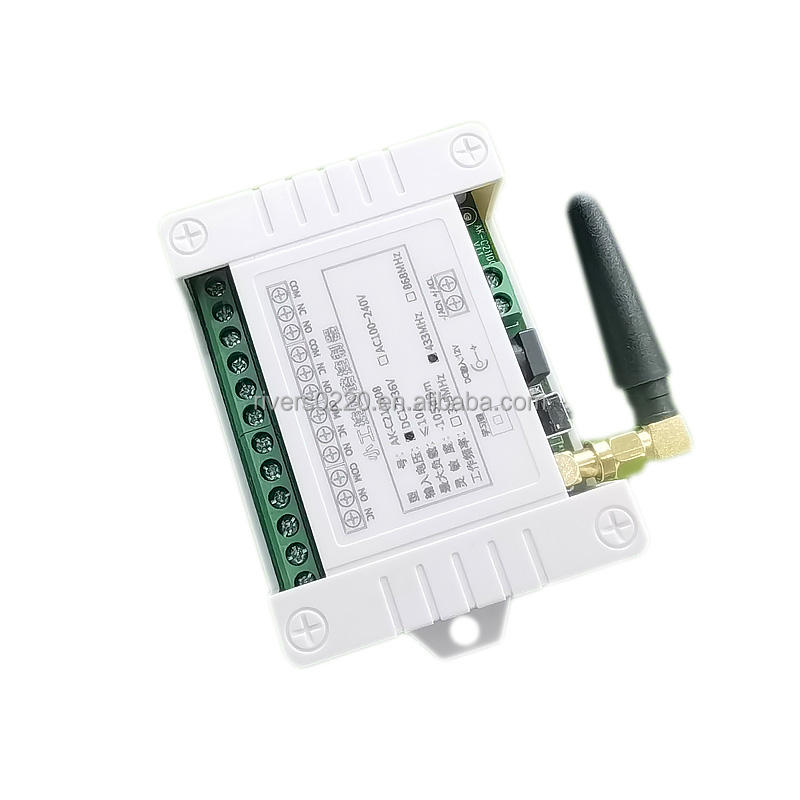

• Compact 95 × 62 × 28 mm receiver enclosure

• Suitable for electric doors, windows, lights, switches, motors and automation equipment

• Neutral packaging or customized packaging available

Specifications

Product nameRAB8 receiver
Channels4
Operating voltageDC 12–36V
AC versionAC 100–240V
ModulationASK
Frequency433 MHz / 315 MHz
EncodingEV1527 learning code / HS2260 fixed code
Relay load≤10A per channel
No-load current≤37mA
Standby current≤1mA

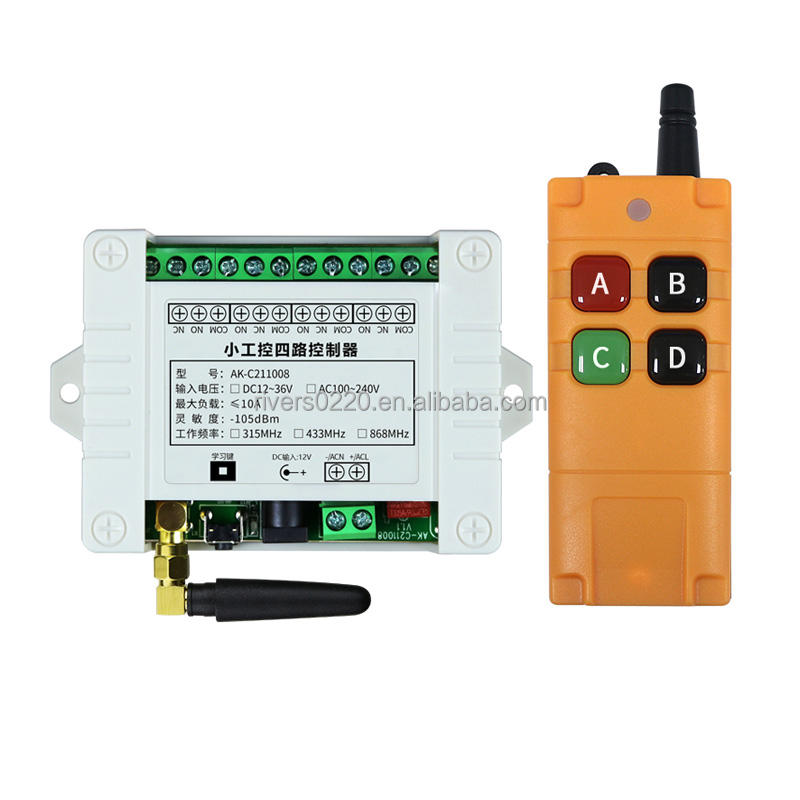

Remote buttons4
Theoretical rangeUp to 1000 m in open ideal conditions
Receiver size95 × 62 × 28 mm
Remote power supply9V battery included
MaterialPlastic and metal
Package size10 × 10 × 8 cm
Gross weight0.45 kg
