RF1000 Long-Range Wireless Alarm Signal Transmitter Module
MODEL · RF1000DC 12–24V wireless alarm transmitter module with 315/433.92 MHz options, dry-contact triggering, and 200 m or 1000 m open-area range versions.
Chat on WhatsAppProduct details
RF1000 is a compact wireless transmitting module for alarm systems, door sensors, lighting controls and other wired-to-wireless signal applications. It accepts normally open or normally closed dry-contact signals and sends a short RF transmission when triggered.
Choose between 200 m and 1000 m versions, with 315 MHz or 433.92 MHz operating frequency. The module uses a 0.7-second transmission cycle rather than continuous transmission, helping multiple transmitters share the same wireless channel without blocking it.
Key features
• Normally open and normally closed dry-contact trigger support

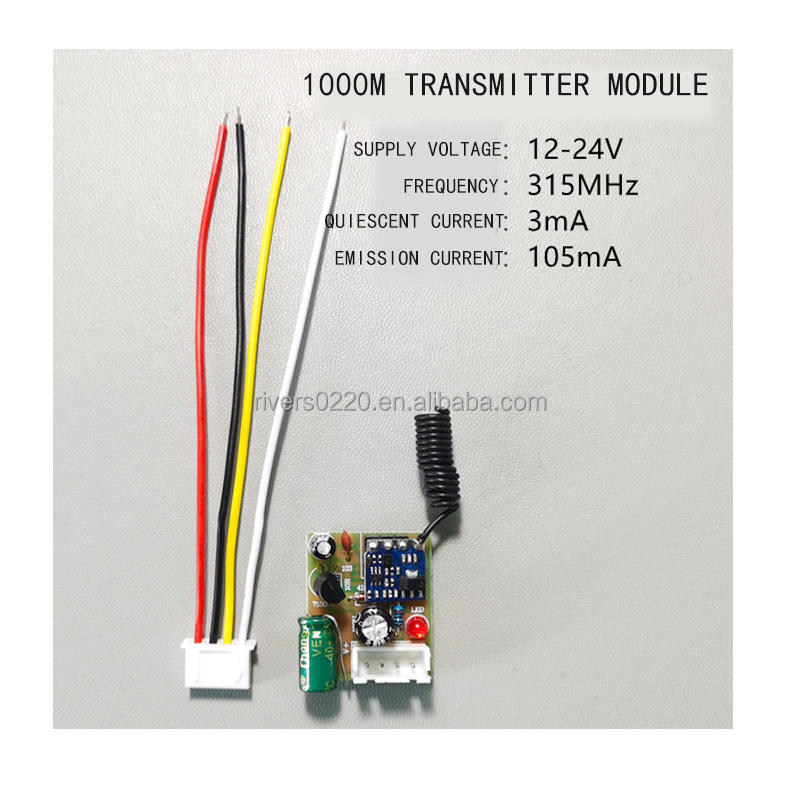

• DC 12V or 24V versions with a 9–24V operating range

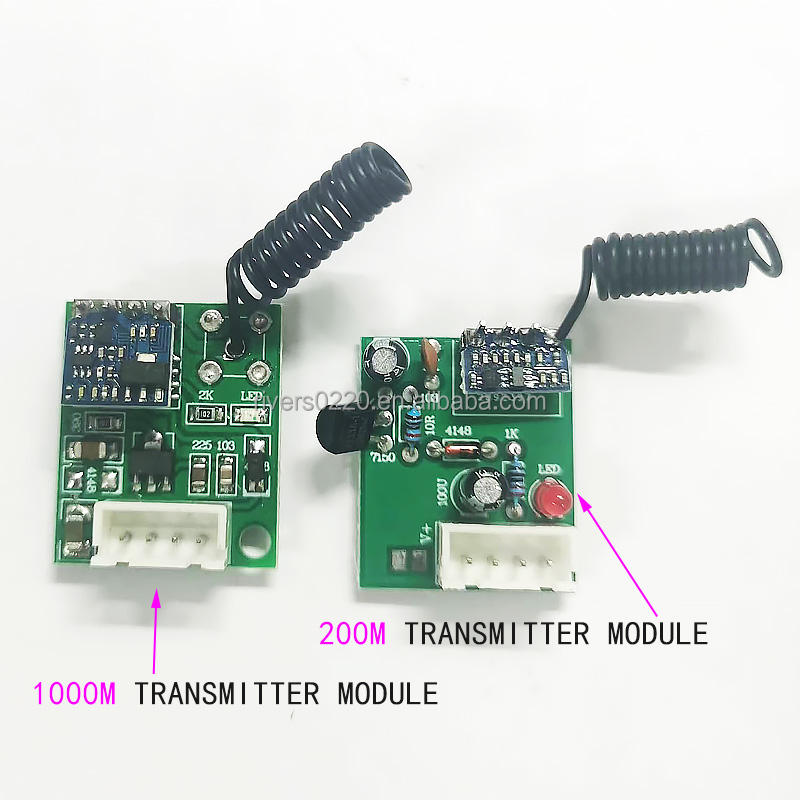

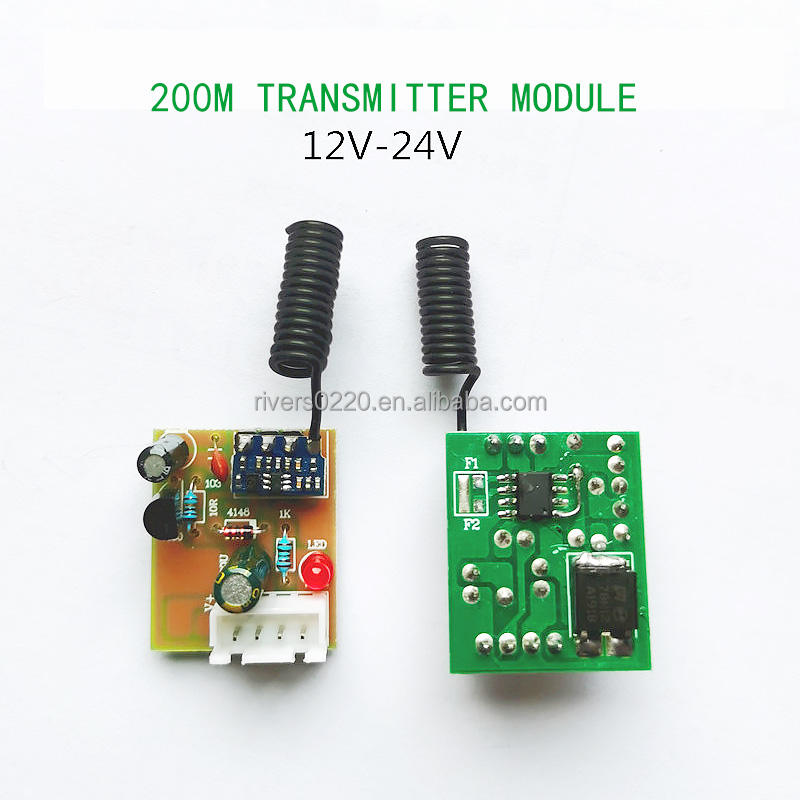

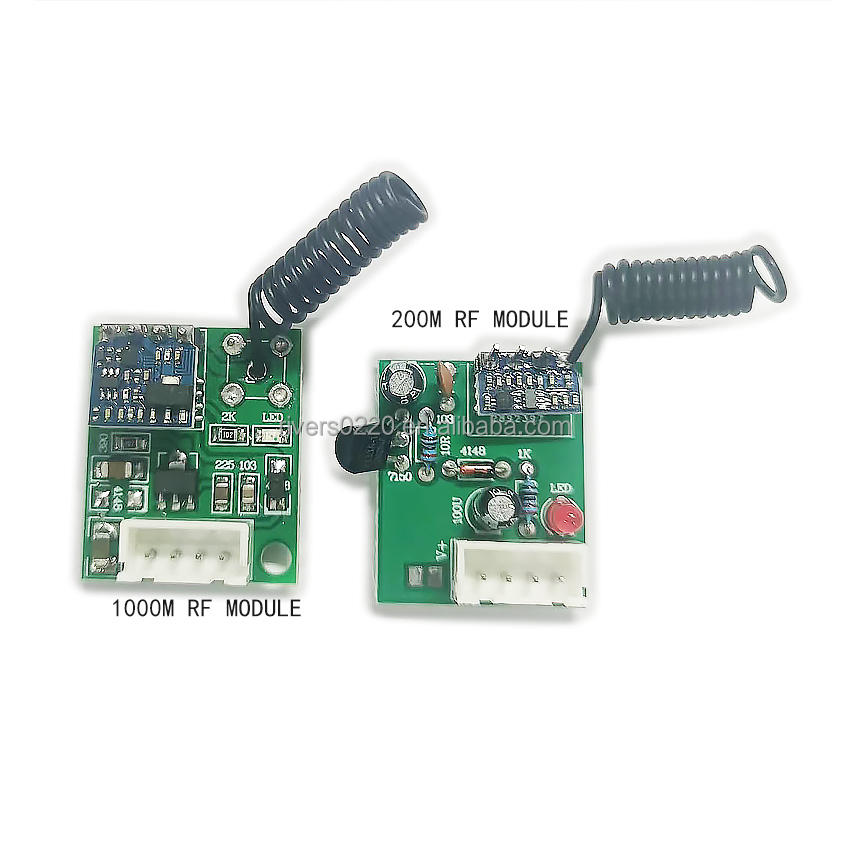

• 200 m and 1000 m open-area transmission options

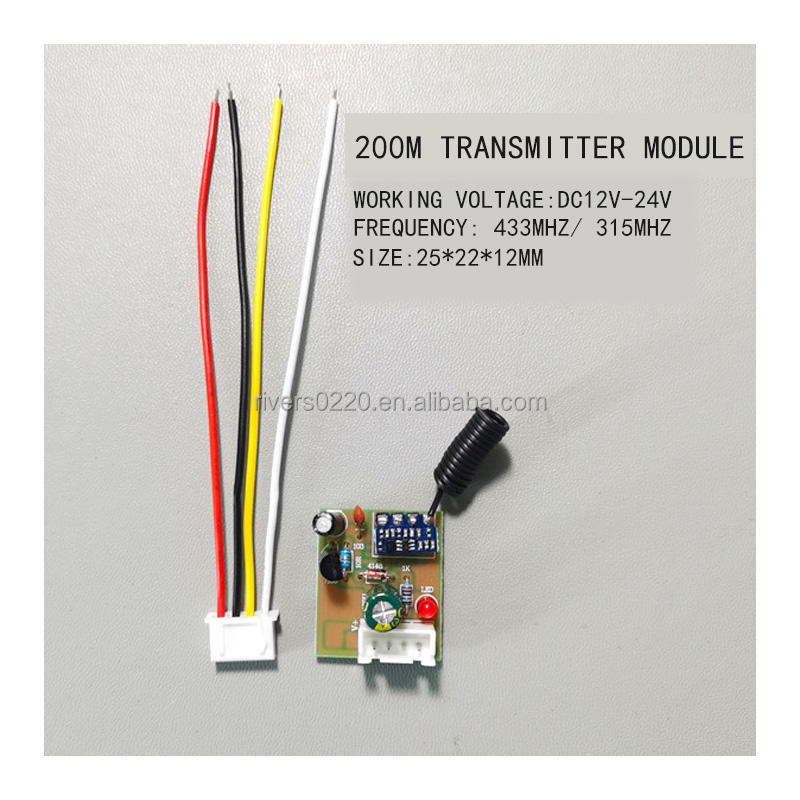

• 315 MHz and 433.92 MHz frequency options
• Power-on, dry-contact flip and high-level trigger methods
• Low standby current for continuously powered or battery-supported systems
• Compatible with fixed-code PT2262/PT2264/SC2262 and EV1527 learning-code systems
• Suitable for alarm systems, doors, lights, lamps and remote signaling
