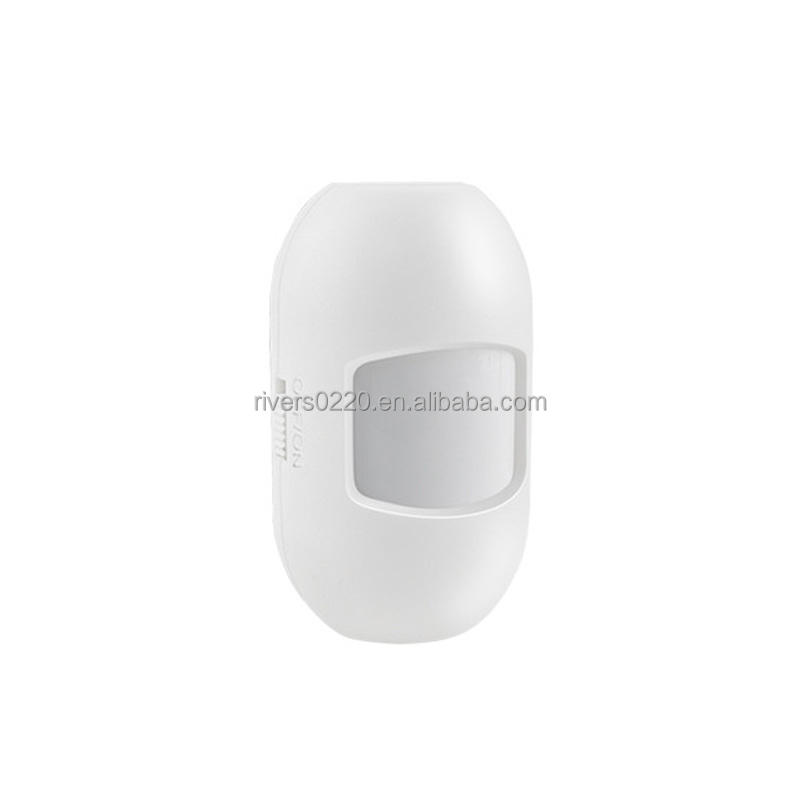

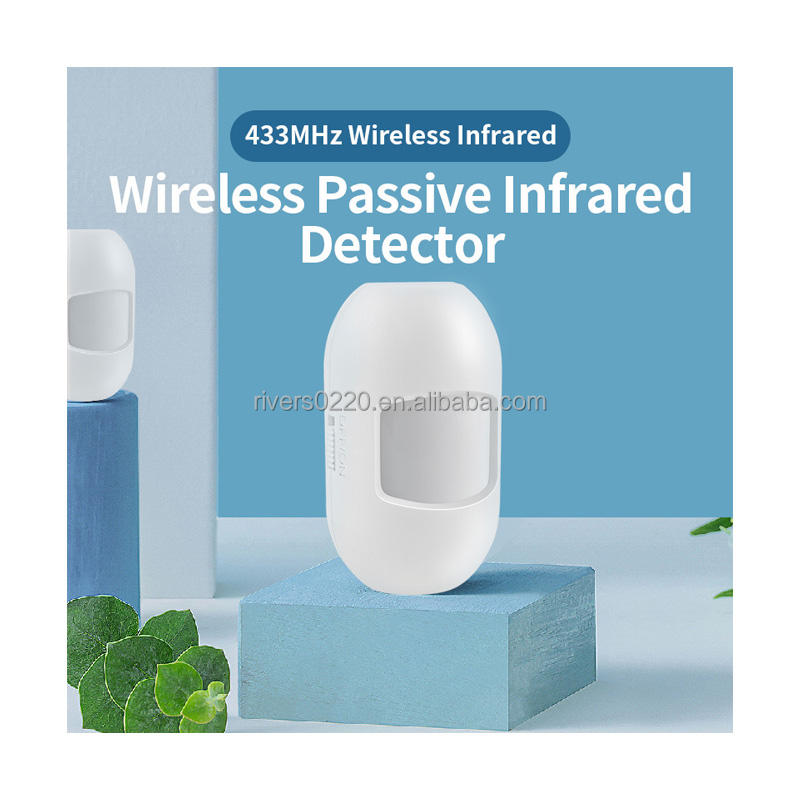

RM01 433MHz Wireless PIR Motion Sensor

The RM01 is a compact wireless passive infrared motion sensor for indoor security alarms, smart-home automation and anti-theft systems. When movement is detected, it sends a 433.92 MHz learning-code signal to a compatible alarm host or receiver.

A wide 110-degree detection angle and an 8-meter sensing range provide practical room coverage, while ultra-low standby current supports long battery life. The supplied mounting bracket allows flexible wall or corner positioning.

Key features

• Passive infrared human-motion detection

• 433.92 MHz wireless signal transmission

• EV1527 learning-code compatibility

• Up to 8 m detection distance at 25°C

• 110° wide detection angle

• Up to 60 m wireless range in open conditions

• Low standby current of 15µA or less

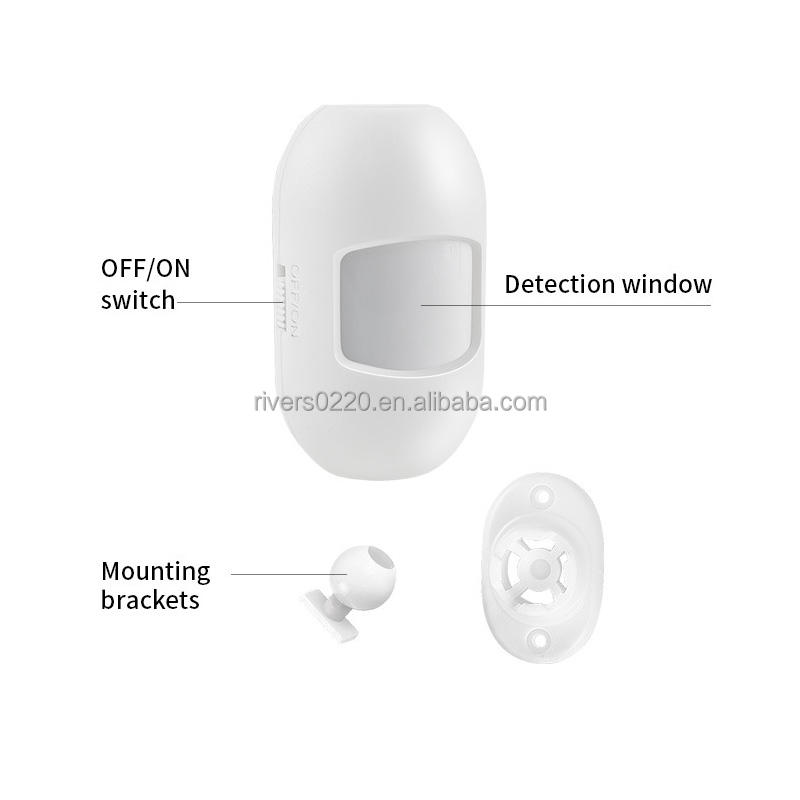

• Compact ABS housing with adjustable mounting bracket

• Suitable for indoor alarms, anti-theft systems and smart-home automation

• Battery, bracket and mounting hardware configuration suitable for quick installation
