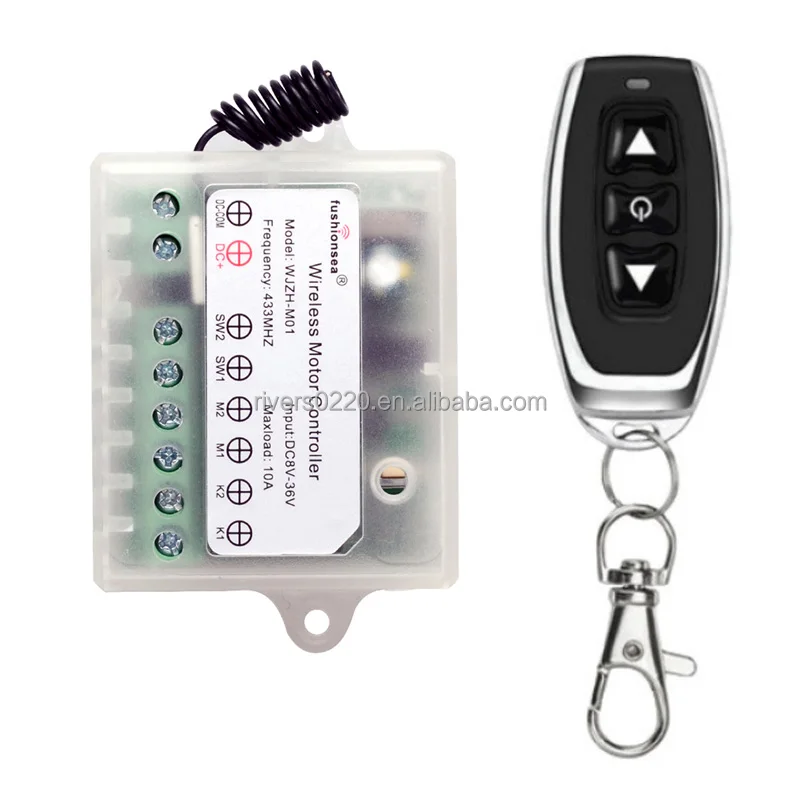

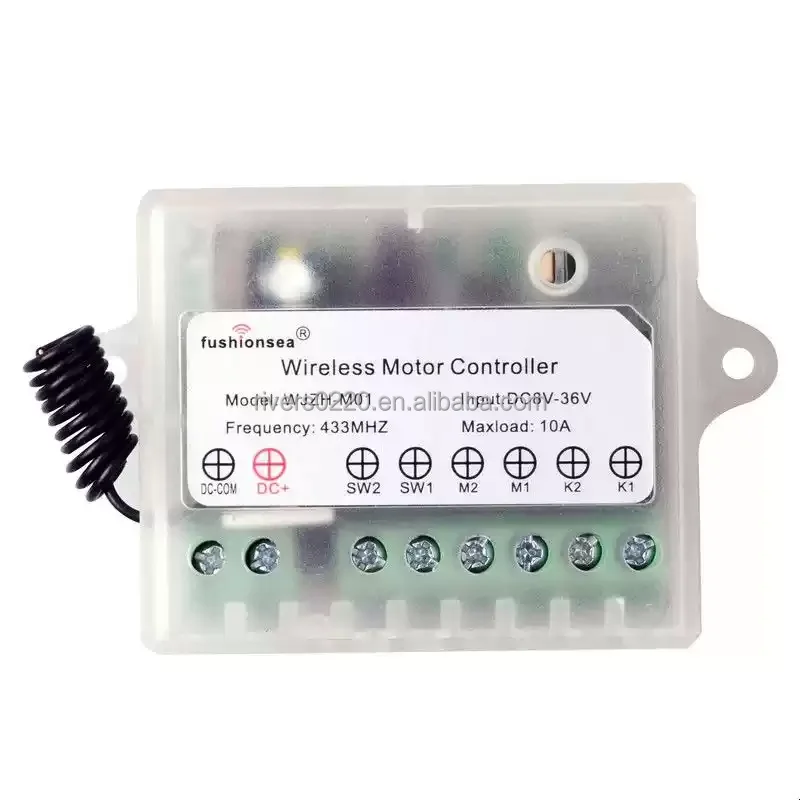

RM01 12V/24V/36V Wireless DC Motor Forward/Reverse Controller

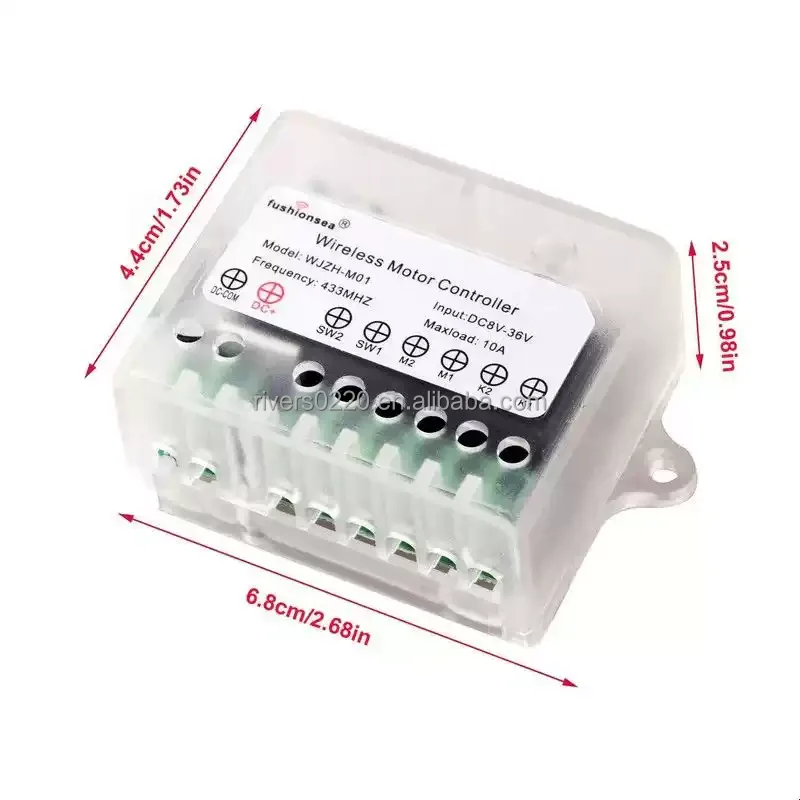

MODEL · RM01Compact RF controller for 12V, 24V or 36V DC motors, providing wireless forward/reverse operation, external momentary controls, limit-switch support and up to 10A current.
Product details
Reliable wireless control for DC motors
The RM01 is a compact wireless RF controller designed for 12V, 24V and 36V DC motor systems. It gives operators convenient forward, reverse and stop control while supporting external push buttons and limit-switch integration for practical equipment automation.
Forward, reverse and momentary operation
In the default momentary mode, the motor runs only while a control button is held. Press and hold one button to drive the motor forward, or press and hold the second button to reverse it. Releasing the button stops the motor, giving the operator direct and predictable control during positioning.
Designed for machine and actuator integration
Works with DC 12V, 24V and 36V power systems
Handles loads up to 10A
Supports forward, reverse and stop functions

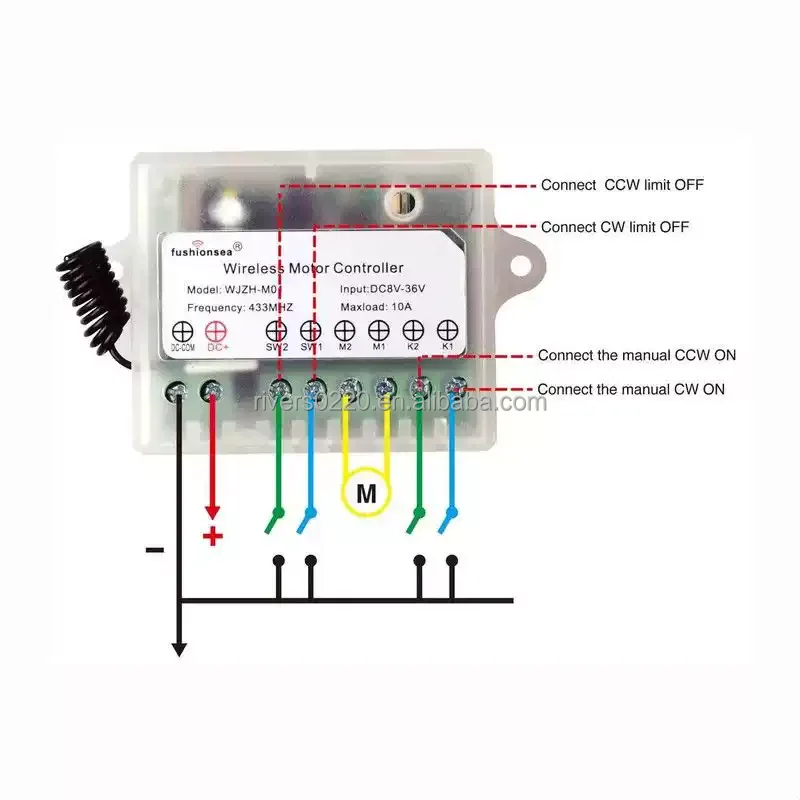

Supports travel-limit control for safer end-position operation
Provides an approximate wireless range of 10 to 50 metres in suitable conditions
Operates across a wide -20°C to 70°C temperature range
Typical applications
The controller is suitable for electric actuators, linear-motion equipment, doors and gates, lifting mechanisms, curtains, small winches and other machinery that requires reversible DC motor control. Final range and load capacity depend on the installation environment, antenna placement, motor characteristics and power supply.
Integration notes
Confirm the motor voltage, running current and stall current before installation. Use suitable over-current protection and ensure that any limit switches are wired according to the equipment design. Contact ANRIVERS for application matching, customized control logic or volume requirements.
