RSOS Wireless SOS Panic Button Remote Control

Simple Wireless Call Activation

The RSOS is a compact wireless panic button designed to send a clear call signal to a compatible alarm receiver or host. Its large, easy-to-recognize SOS surface supports quick activation in home security, caregiver call, reception, service and assistance systems without requiring a wired connection at the point of use.

Choose a 315MHz or 433MHz version to match your receiving equipment. Learning-code and fixed-code configurations are available, making the transmitter suitable for both new system designs and compatible replacement or expansion projects.

Compact, Practical Design

Powered by two included 3V batteries, the RSOS operates at DC 6V with a typical current of 12mA. ASK modulation and transmitting power above 10mW provide a practical open-area range of approximately 50–100 metres. The lightweight plastic housing is available in white, black or red to suit different installation and visibility requirements.

• Single-purpose SOS call button for fast, intuitive operation

• 315MHz and 433MHz frequency options

• Learning-code or fixed-code encoding options

• 50–100 m transmitting distance in open space

• Two 3V batteries included

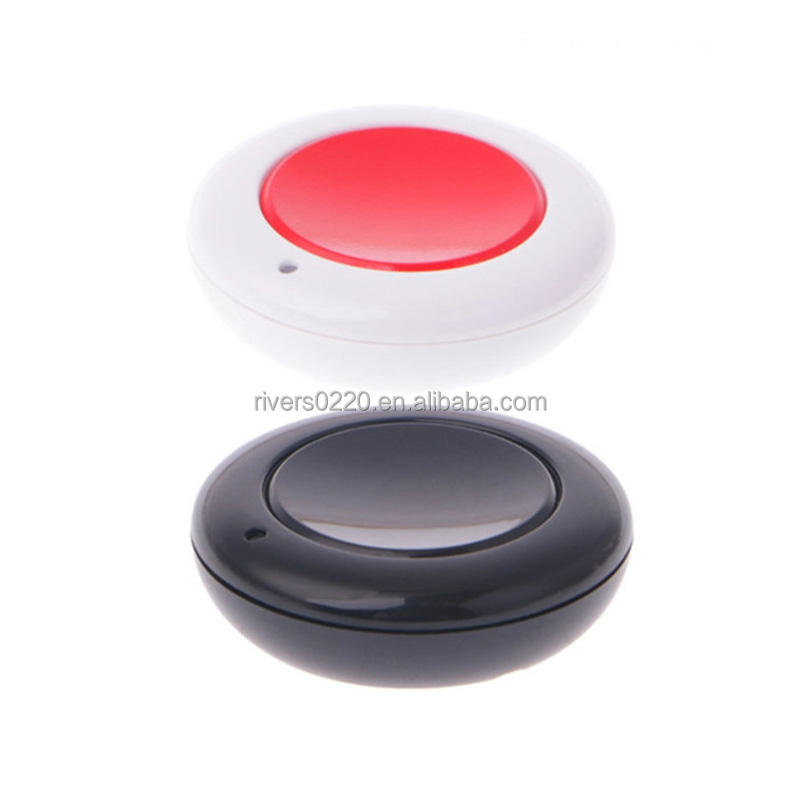

• White, black and red housing options

• Compact wireless design for flexible placement

Typical Applications

Use the RSOS as a wireless trigger in compatible home alarm systems, caregiver and assistance call systems, front desks, service counters, security stations and other locations where a simple remote call input is needed. The button transmits a wireless command only; the audible, visual or connected response depends on the paired receiver and overall system design.

Compatibility and Ordering

Confirm the required operating frequency and encoding type before ordering. The transmitter must be paired with a compatible 315MHz or 433MHz receiver or alarm host. Actual range depends on building materials, nearby radio interference, receiver sensitivity and antenna placement, so installation testing is recommended in the intended environment.
