SD-1 Single-Button Cloning RF Remote Control

The SD-1 is a compact, single-button RF remote for duplicating a compatible remote through face-to-face code copying. Available in 315MHz and 433.92MHz versions, it gives the user one large control button and a visible LED indicator for straightforward everyday operation.

Simple control in a compact round housing

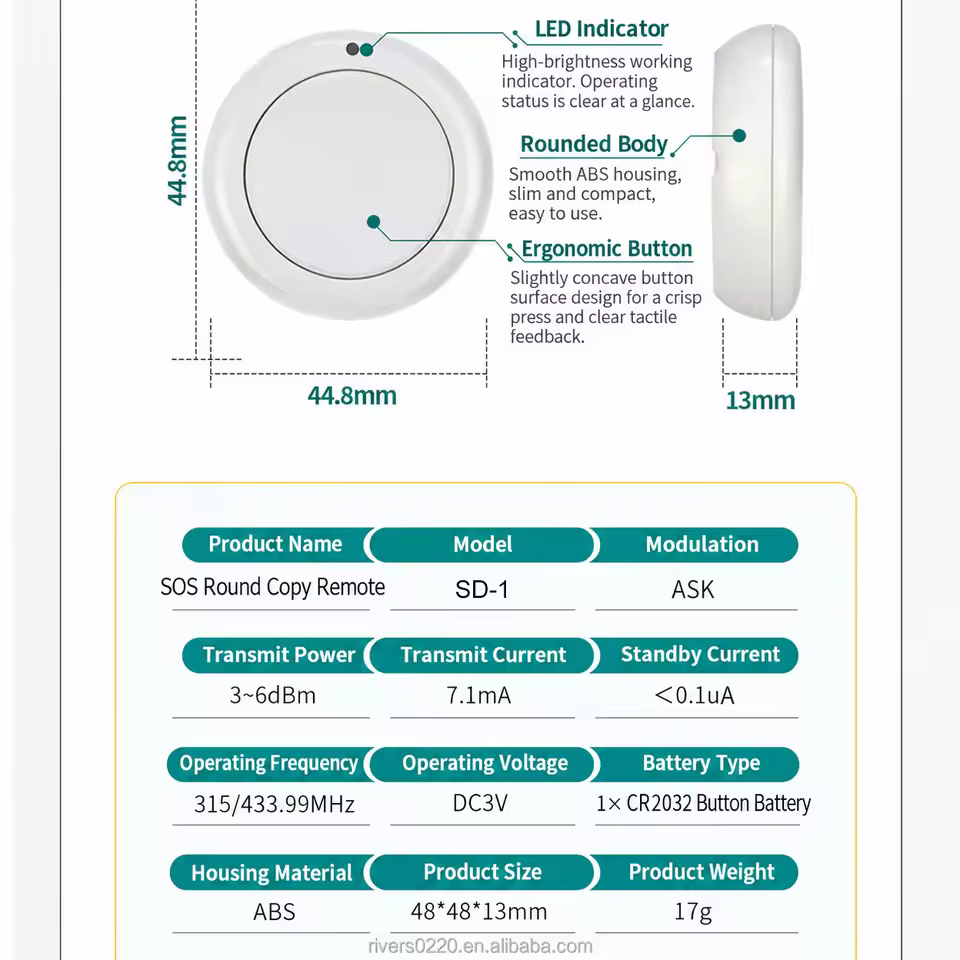

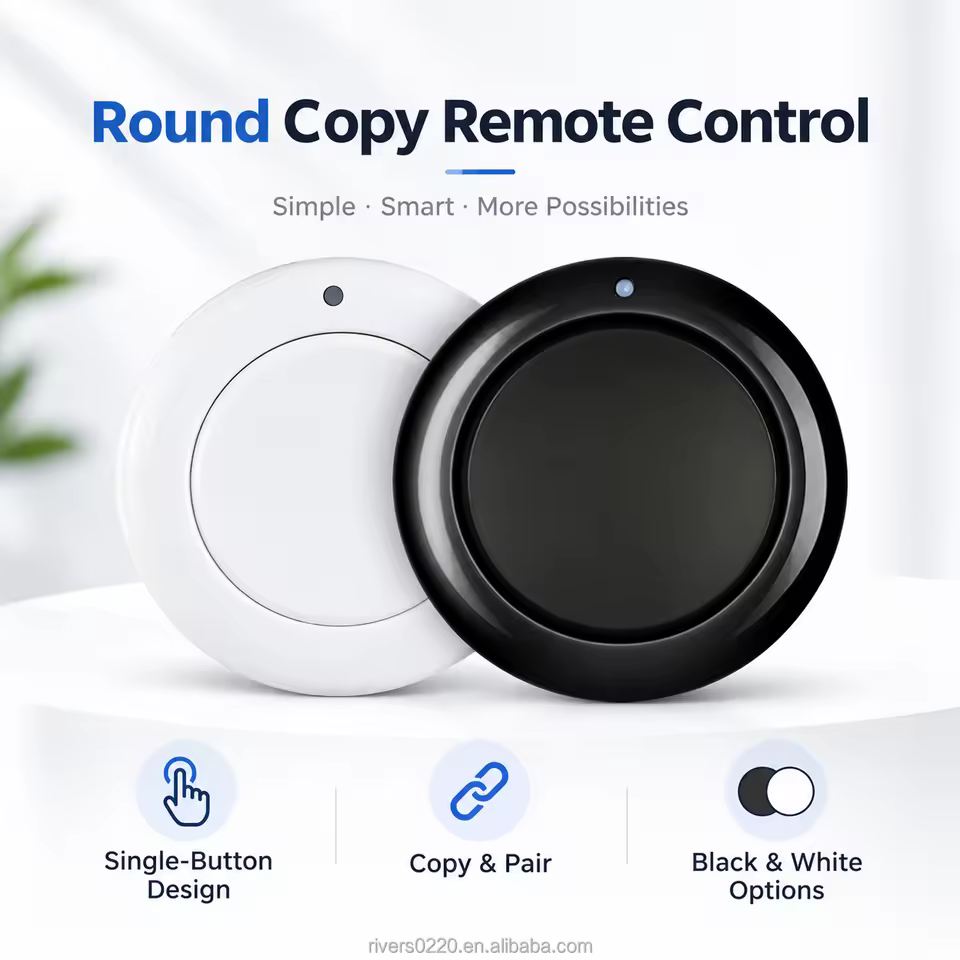

A slightly concave button provides a clear pressing surface, while the rounded ABS housing keeps the remote slim and easy to handle. Black and white options suit different equipment and installation styles. The LED provides a visible indication of operating status.

• One large button for a single control command.

• ASK RF transmission with 315MHz or 433.92MHz frequency options.

• DC 3V operation from one CR2032 button cell.

• ABS plastic housing with a source-listed product weight of 17g.

Face-to-face copying for compatible remotes

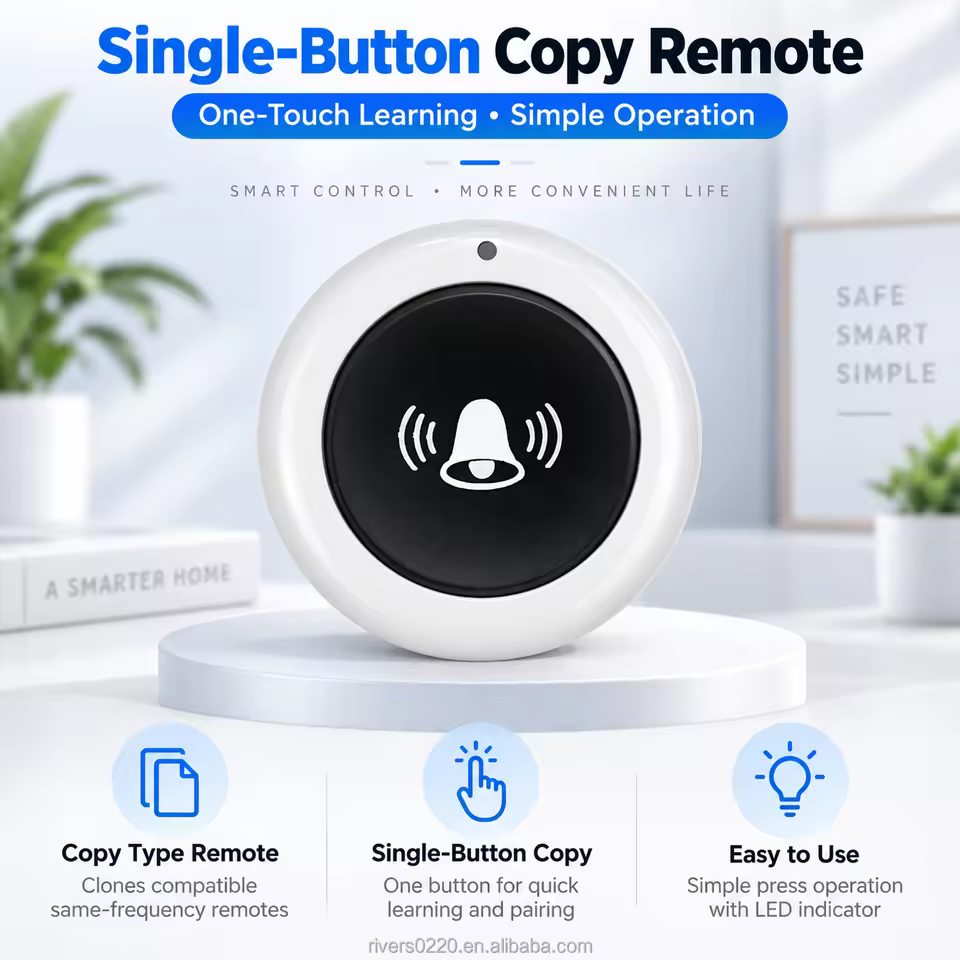

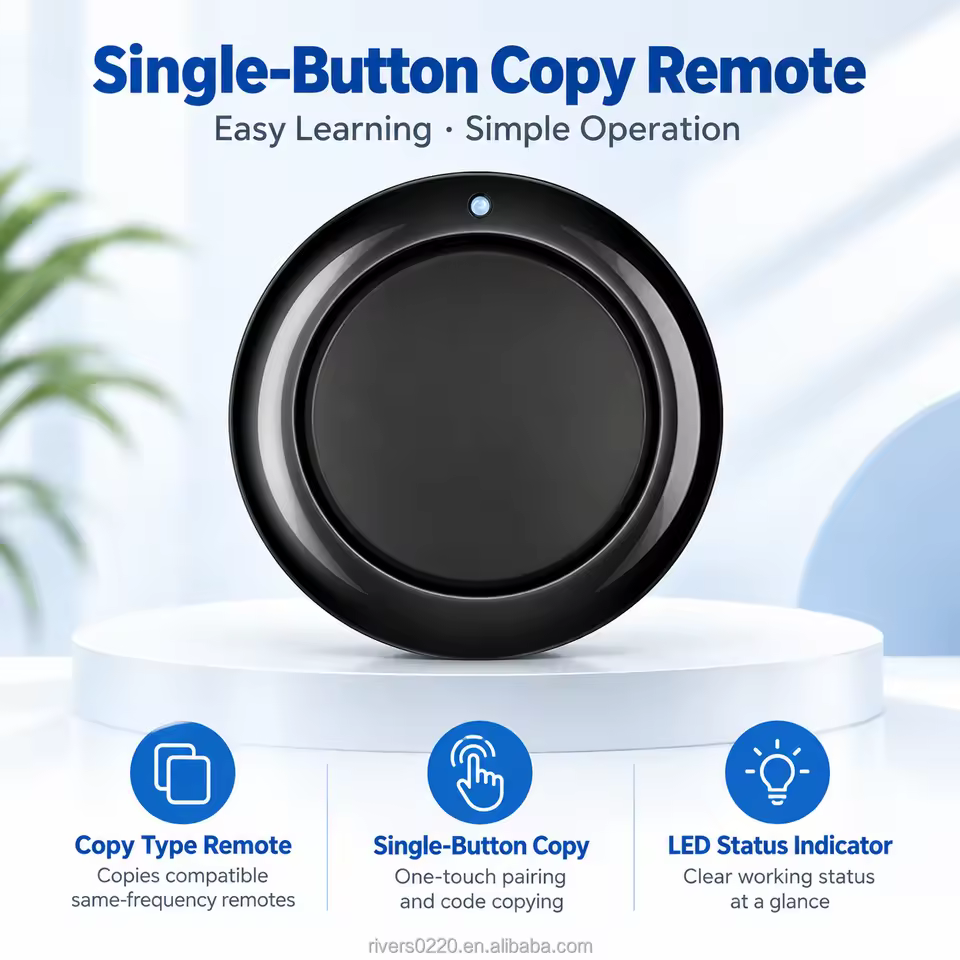

The SD-1 supports code learning, code clearing and repeated rewriting. It is intended to copy compatible standard remotes operating on the same frequency. Match the frequency and confirm the original remote’s coding compatibility before selecting a replacement; a shared frequency alone does not establish compatibility.

For a replacement or integration project, provide the original remote model, its operating frequency and the receiver details so the appropriate version can be checked. Copying and pairing should be verified on the intended equipment before regular use.

Applications and practical range

Suitable applications include compatible gate and garage door controls, electric door access systems, doorbell switches and home lighting controls. The product listing specifies a control distance of 30m. Actual operating distance depends on the receiver, antenna placement, obstructions and local RF conditions, so test the remote at the intended operating location.

Selection details

• Select the 315MHz or 433.92MHz version to match the existing system.

• Confirm code compatibility and the receiver’s learning requirements.

• Choose the housing color and confirm battery supply requirements when ordering.

• Test copying, receiver response and operating distance with a sample before a larger rollout.
